1241.6661 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

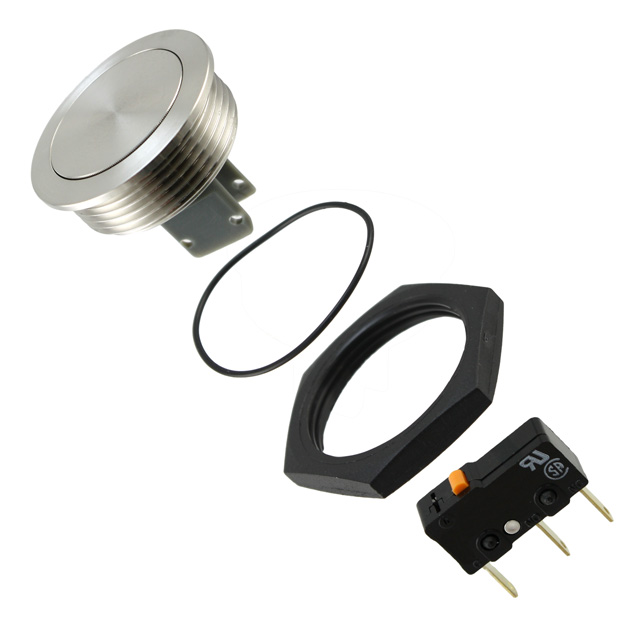

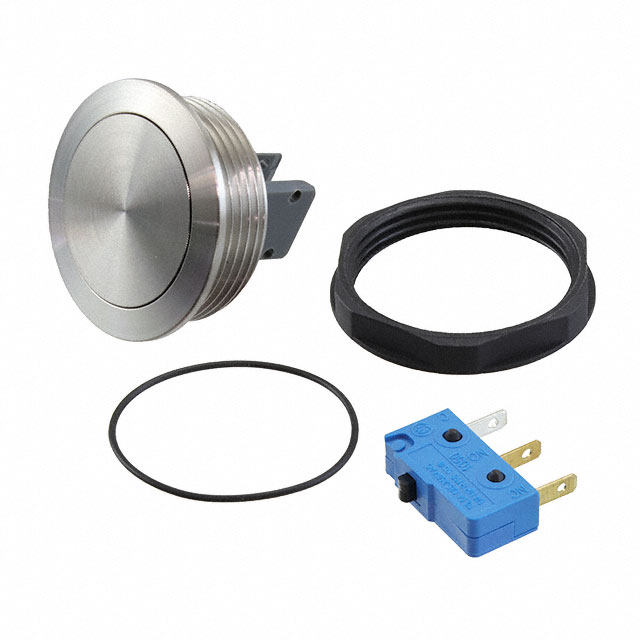

SWITCH PUSHBUTTON SPDT 10A 250V
| Part | Mechanical Life | Electrical Life | Actuator Marking | Color - Actuator/Cap | Mounting Type | Type | Actuator Type | Switch Function | Current Rating (Amps) | Panel Cutout Dimensions [diameter] | Ingress Protection | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 1500000 Cycles | 50000 Cycles | No Marking | Silver | Panel Mount Front | Anti-Vandal | Button Flush Round | On-Mom | 10 A | 30.1 mm | IP40 | SPDT | 85 °C | -25 °C | Quick Connect - 0.110" (2.8mm) | 250 V |
 SCHURTER Inc. | 1500000 Cycles | 200000 Cycles | No Marking | Silver | Panel Mount Front | Anti-Vandal | Button Flush Round | On-Mom | 5 A | 30.1 mm | IP40 | SPDT | 85 °C | -25 °C | Quick Connect - 0.110" (2.8mm) | 125 V |
