726-090 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 90POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Number of Positions/Bay/Row	Pitch	Pitch	Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Card Thickness [Max]	Card Thickness [Min]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination	Card Type	Contact Material	Contact Type	Read Out	Gender	Number of Rows [custom]
EDAC Inc. 726-090-541-201	Polyester Thermoplastic	2	45	3.18 mm	0.125 in	Black	90	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	Non Specified - Dual Edge	Copper Alloy	Cantilever	Dual	Female	2
EDAC Inc. 726-090-527-201	Polyester Thermoplastic	2	45	3.18 mm	0.125 in	Black	90	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Gold	Press-Fit	Non Specified - Dual Edge	Copper Alloy	Cantilever	Dual	Female	2
EDAC Inc. 726-090-540-201	Polyester Thermoplastic	2	45	3.18 mm	0.125 in	Black	90	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	Non Specified - Dual Edge	Copper Alloy	Cantilever	Dual	Female	2
EDAC Inc. 726-090-553-201	Polyester Thermoplastic	2	45	3.18 mm	0.125 in	Black	90	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	Non Specified - Dual Edge	Copper Alloy	Cantilever	Dual	Female	2
EDAC Inc. 726-090-545-201	Polyester Thermoplastic	2	45	3.18 mm	0.125 in	Black	90	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Gold	Press-Fit Wire Wrap	Non Specified - Dual Edge	Copper Alloy	Cantilever	Dual	Female	2

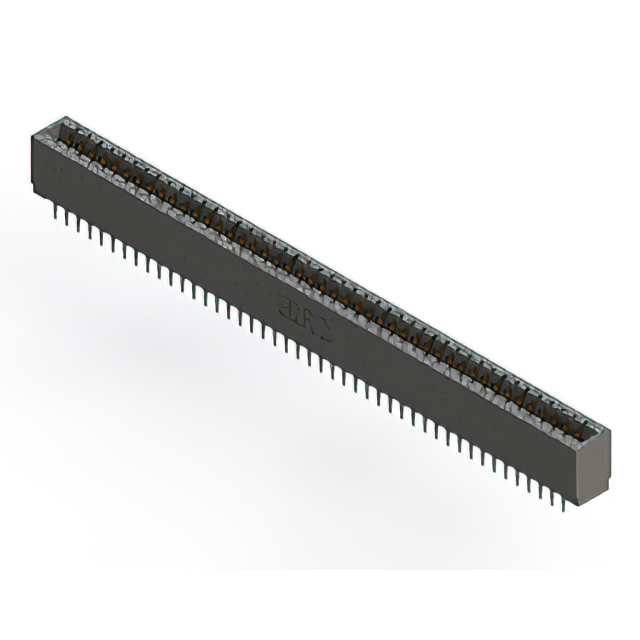

EDAC Inc. 726-090-525-201	Polyester Thermoplastic	2	45	3.18 mm	0.125 in	Black	90	-40 C	105 ░C	Through Hole	0.07 in 1.78 mm	0.054 in 1.37 mm	30 Áin	0.76 Ám	Gold	Press-Fit	Non Specified - Dual Edge	Copper Alloy	Cantilever	Dual	Female	2
