LCM-S02004 Series

Catalog

LCD MOD 80 DIG 20 X 4 REFLECTIVE

Part	Number of Characters	Display Type	Outline L x W x H [z]	Outline L x W x H [y]	Outline L x W x H [x]	Operating Temperature [Max]	Operating Temperature [Min]	Dot Size [y]	Dot Size [x]	Character Format [x]	Character Format [y]	Interface	Background Color	Viewing Area [x]	Viewing Area [y]	Display Mode	Display Format [x]	Display Format [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Character Size [y]	Character Size [z]

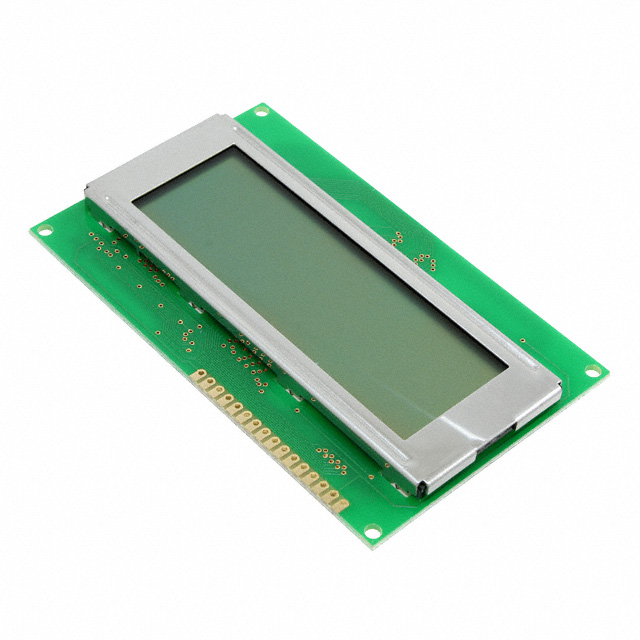

Lumex Opto/Components Inc. LCM-S02004DSR	80	STN - Super-Twisted Nematic	8.8 mm	60 mm	98 mm	50 °C	0 °C	0.55 mm	0.55 mm	5 Dots	8 Dots	Parallel	Green	77 mm	26.3 mm	Reflective	20	4

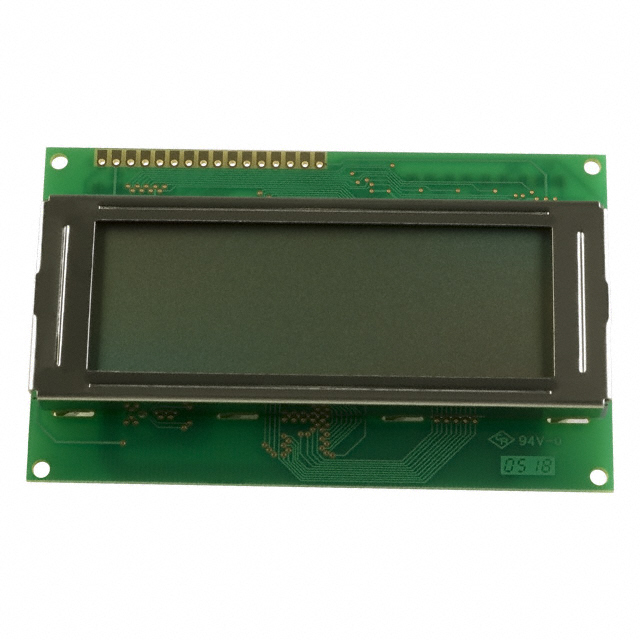

Lumex Opto/Components Inc. LCM-S02004DSF	80	STN - Super-Twisted Nematic	12.7 mm	60 mm	98 mm	50 °C	0 °C	0.55 mm	0.55 mm	5 Dots	8 Dots	Parallel	Green	77 mm	26.3 mm	Transflective	20	4

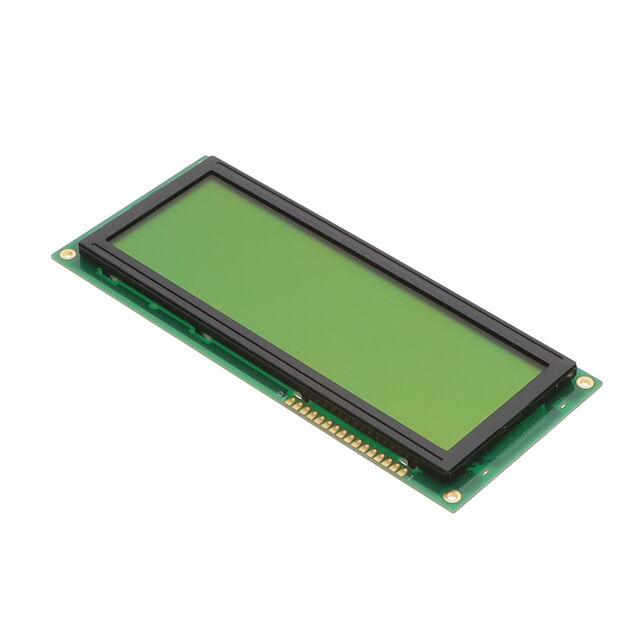

Lumex Opto/Components Inc. LCM-S02004DSR/D-YE	80	STN - Super-Twisted Nematic	11 mm	62.5 mm	146 mm	70 °C	-20 ░C	1.1 mm	0.92 mm	5 Dots	8 Dots			123.5 mm	43 mm	Reflective	20	4	4.75 V	5.25 V	4.84 mm	9.22 mm
Lumex Opto/Components Inc. LCM-S02004DTR	80	TN - Twisted Nematic	8.8 mm	60 mm	98 mm	50 °C	0 °C	0.55 mm	0.55 mm	5 Dots	8 Dots	Parallel		77 mm	26.3 mm	Reflective	20	4
Lumex Opto/Components Inc. LCM-S02004DTF	80	TN - Twisted Nematic	12.7 mm	60 mm	98 mm	50 °C	0 °C	0.55 mm	0.55 mm	5 Dots	8 Dots	Parallel		77 mm	26.3 mm	Transflective	20	4
Lumex Opto/Components Inc. LCM-S02004DSF-1
