DFMC Series

Pluggable Terminal Blocks DFMC 1,5/ 3-ST- 3,5-LR BK

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks DFMC 1,5/ 3-ST- 3,5-LR BK

Catalog

Pluggable Terminal Blocks DFMC 1,5/ 3-ST- 3,5-LR BK

Part	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Voltage - UL	Type	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Color	Termination Style	Voltage - IEC	Plug Wire Entry	Number of Levels	Mounting Type	Current - UL	Pitch	Pitch	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Contact Mating Finish	Current - IEC	Positions Per Level	Features	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Wire Strip Length	Material Flammability Rating	Housing Material	Insulation Height	Insulation Height
Phoenix Contact 1844714	0.5 mm˛	0.14 mm˛	150 V	Plug Female Sockets	20 AWG	26 AWG	Black	Push-In Spring Screwless - Leg Spring	160 V	180 °	2	Free Hanging (In-Line)	6 A	0.1 "	2.54 mm	0.14 mm²	0.5 mm²	Gold	6 A	16
Phoenix Contact 1711658			50 V	Plug Female Sockets	16 AWG	24 AWG	Black	Push-In Spring Screwless - Leg Spring	160 V	180 °	2	Free Hanging (In-Line)	8 A	0.138 "	3.5 mm	0.2 mm²	1.5 mm²	Tin	8 A	3	Ejector Latches Push Button Actuated	-40 C	100 °C	6
Phoenix Contact 1790140			150 V	Plug Female Sockets	16 AWG	24 AWG	Green	Screwless - Push-In Spring	250 V	180 °	2	Free Hanging (In-Line)	8 A	0.138 "	3.5 mm	0.2 mm²	1.5 mm²	Tin	8 A	6				12	10 mm	UL94 V-0	Polyamide (PA) Nylon	0.522 in	13.25 mm
Phoenix Contact 1812539			50 V	Plug Female Sockets	16 AWG	24 AWG	Black	Screwless - Push-In Spring	160 V	180 °	2	Free Hanging (In-Line)	8 A	0.138 "	3.5 mm	0.2 mm²	1.5 mm²	Tin	8 A	4	Push Button Actuated	-40 C	100 °C	8

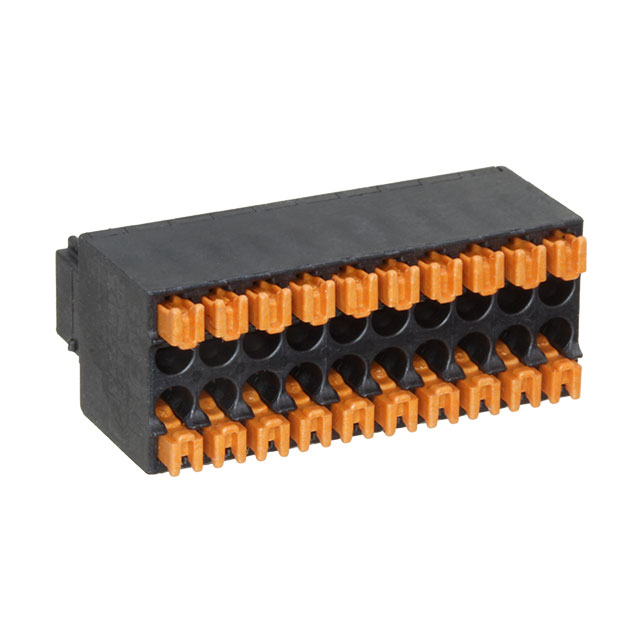

Phoenix Contact 1844659			150 V	Plug Female Sockets	20 AWG	26 AWG	Black	Push-In Spring Screwless - Leg Spring	160 V	180 °	2	Free Hanging (In-Line)	6 A	0.1 "	2.54 mm	0.14 mm²	0.5 mm²	Gold	6 A	10				20

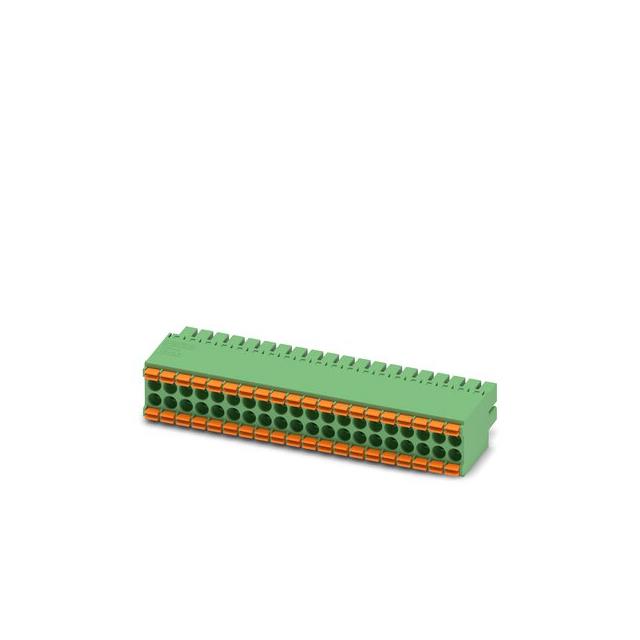

Phoenix Contact 1790289			150 V	Plug Female Sockets	16 AWG	24 AWG	Green	Screwless - Push-In Spring	250 V	180 °	2	Free Hanging (In-Line)	8 A	0.138 "	3.5 mm	0.2 mm²	1.5 mm²	Tin	8 A	20				40	10 mm	UL94 V-0	Polyamide (PA) Nylon	0.522 in	13.25 mm

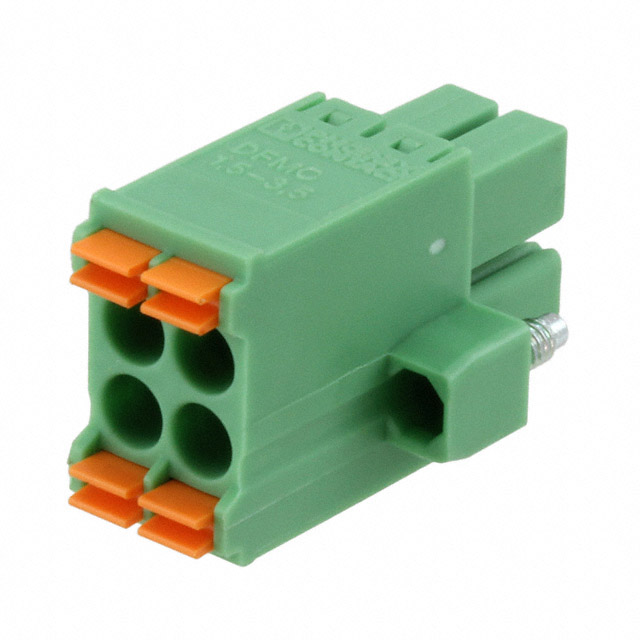

Phoenix Contact 1790292	1.5 mm˛	0.2 mm˛	150 V	Plug Female Sockets	16 AWG	24 AWG	Green	Screwless - Push-In Spring	250 V	180 °	2	Free Hanging (In-Line)	8 A	0.138 "	3.5 mm	0.2 mm²	1.5 mm²	Tin	8 A	2	Mating Flange			4	10 mm	UL94 V-0	Polyamide (PA) Nylon	0.522 in	13.25 mm

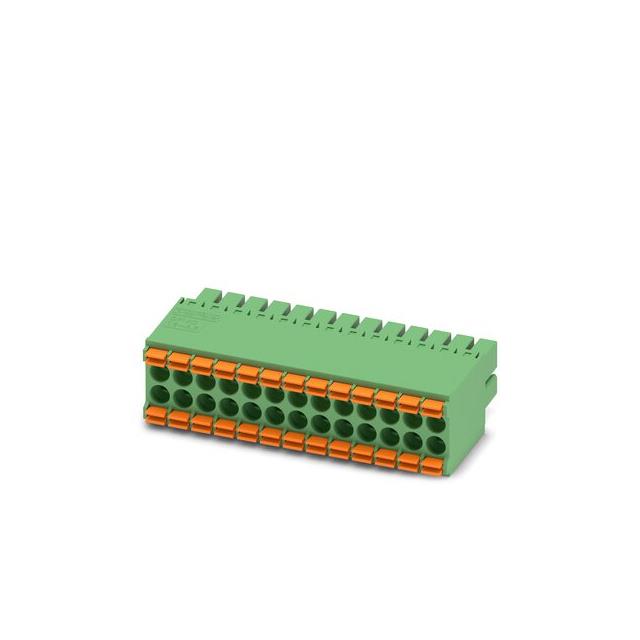

Phoenix Contact 1790218	1.5 mm˛	0.2 mm˛	150 V	Plug Female Sockets	16 AWG	24 AWG	Green	Screwless - Push-In Spring	250 V	180 °	2	Free Hanging (In-Line)	8 A	0.138 "	3.5 mm	0.2 mm²	1.5 mm²	Tin	8 A	13				26	10 mm	UL94 V-0	Polyamide (PA) Nylon	0.522 in	13.25 mm
Phoenix Contact 1790629			150 V	Plug Female Sockets	16 AWG	24 AWG	Green	Screwless - Push-In Spring	250 V	180 °	2	Free Hanging (In-Line)	8 A	0.138 "	3.5 mm	0.2 mm²	1.5 mm²	Tin	8 A	16					10 mm	UL94 V-0	Polyamide (PA) Nylon	0.522 in	13.25 mm
Phoenix Contact 1790234			150 V	Plug Female Sockets	16 AWG	24 AWG	Green	Screwless - Push-In Spring	250 V	180 °	2	Free Hanging (In-Line)	8 A	0.138 "	3.5 mm	0.2 mm²	1.5 mm²	Tin	8 A	15				30
