CMLE053T Series

Catalog

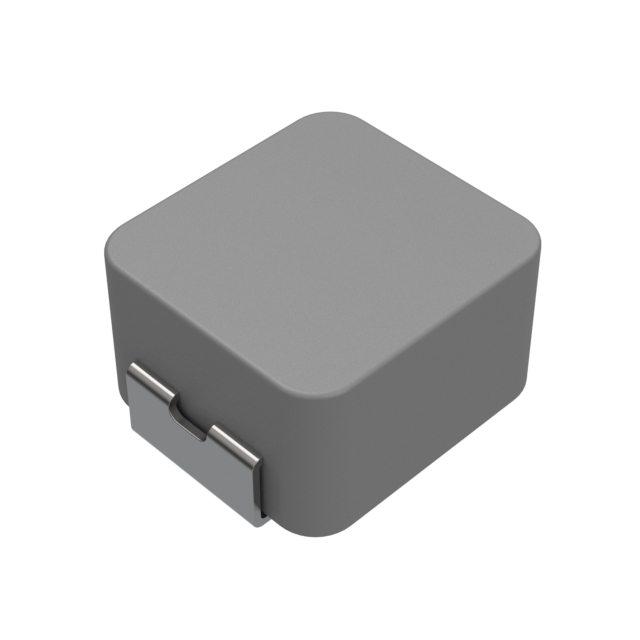

FIXED IND 2.2UH 6.9A 24MOHM SMD

Part	Material - Core	DC Resistance (DCR)	Inductance	Shielding	Inductance Frequency - Test	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Current - Saturation (Isat)	Current Rating (Amps)	DC Resistance (DCR) [Max]
Delta Electronics/Cyntec CMLE053T-2R2MS	Metal	24 mOhm	2.2 µH	Shielded	100 kHz	20 %	4.85 mm	0.185 in	0.191 in	4.7 mm	Surface Mount	0.118 "	3 mm	-55 C	125 °C	Nonstandard	7 A	6.9 A
Delta Electronics/Cyntec CMLE053T-3R3MS	Metal		3.3 µH	Shielded	100 kHz	20 %	4.85 mm	0.185 in	0.191 in	4.7 mm	Surface Mount	0.118 "	3 mm	-55 C	125 °C	Nonstandard	6.6 A	5.8 A	36 mOhm
Delta Electronics/Cyntec CMLE053T-R47MS	Metal		470 nH	Shielded	100 kHz	20 %	4.85 mm	0.185 in	0.191 in	4.7 mm	Surface Mount	0.118 "	3 mm	-55 C	125 °C	Nonstandard		14.2 A	5.9 mOhm
Delta Electronics/Cyntec CMLE053T-6R8MS	Metal		6.8 µH	Shielded	100 kHz	20 %	4.85 mm	0.185 in	0.191 in	4.7 mm	Surface Mount	0.118 "	3 mm	-55 C	125 °C	Nonstandard	3.6 A	3.7 A	84 mOhm
Delta Electronics/Cyntec CMLE053T-R20MS	Metal			Shielded	100 kHz	20 %	4.85 mm	0.185 in	0.191 in	4.7 mm	Surface Mount	0.118 "	3 mm	-55 C	125 °C	Nonstandard	18 A	26 A	2.5 mOhm
Delta Electronics/Cyntec CMLE053T-R68MS	Metal		0.68 µH	Shielded	100 kHz	20 %	4.85 mm	0.185 in	0.191 in	4.7 mm	Surface Mount	0.118 "	3 mm	-55 C	125 °C	Nonstandard	10.5 A	12.2 A	8.5 mOhm
Delta Electronics/Cyntec CMLE053T-4R7MS	Metal		4.7 ÁH	Shielded	100 kHz	20 %	4.85 mm	0.185 in	0.191 in	4.7 mm	Surface Mount	0.118 "	3 mm	-55 C	125 °C	Nonstandard	5.1 A	5.1 A	54 mOhm
Delta Electronics/Cyntec CMLE053T-100MS	Metal		10 µH	Shielded	100 kHz	20 %	4.85 mm	0.185 in	0.191 in	4.7 mm	Surface Mount	0.118 "	3 mm	-55 C	125 °C	Nonstandard	3.1 A	3.3 A	125 mOhm
