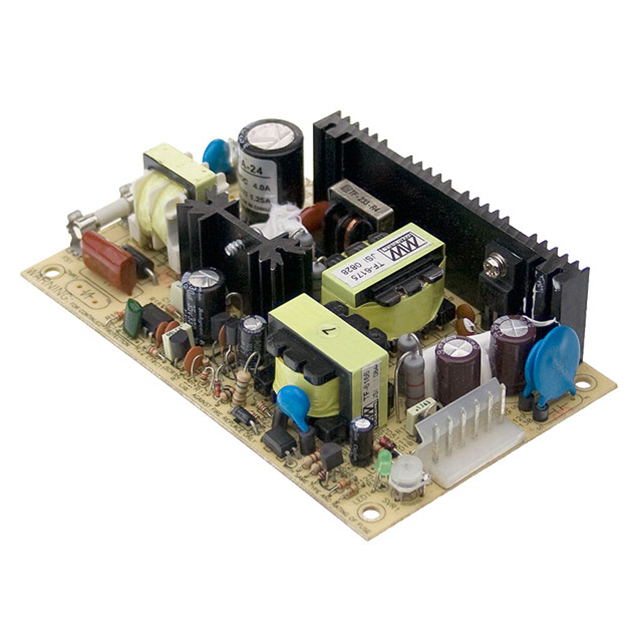

PSD-45 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
DC/DC CONVERTER 5V 45W
| Part | Mounting Type | Applications | Number of Outputs | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Output 1 | Voltage - Input (Min) [Min] | Power (Watts) | Efficiency | Approval Agency | Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | ITE (Commercial) | 1 | 36 V | 9 A | -10 °C | 60 °C | 5 V | 18 V | 45 W | 77 % | CB CE | Open Frame | 127 mm | 5 " | 2.99 in | 1.18 in | 76 mm | 30 mm | 1.5 kV |
MEAN WELL USA Inc. | Chassis Mount | ITE (Commercial) | 1 | 36 V | 1.875 A | -10 °C | 60 °C | 24 V | 18 V | 45 W | 85 % | CB CE | Open Frame | 127 mm | 5 " | 2.99 in | 1.18 in | 76 mm | 30 mm | 1.5 kV |
MEAN WELL USA Inc. | Chassis Mount | ITE (Commercial) | 1 | 18 V | 1.25 A | -10 °C | 60 °C | 24 V | 30 Watts | 79 % | CB CE | Open Frame | 127 mm | 5 " | 2.99 in | 1.18 in | 76 mm | 30 mm | 1.5 kV | |
MEAN WELL USA Inc. | Chassis Mount | ITE (Commercial) | 1 | 18 V | 2.5 A | -10 °C | 60 °C | 12 V | 30 Watts | 78 % | CB CE | Open Frame | 127 mm | 5 " | 2.99 in | 1.18 in | 76 mm | 30 mm | 1.5 kV | |
MEAN WELL USA Inc. | Chassis Mount | ITE (Commercial) | 1 | 72 V | 3.75 A | -10 °C | 60 °C | 12 V | 36 V | 45 W | 83 % | CB CE | Open Frame | 127 mm | 5 " | 2.99 in | 1.18 in | 76 mm | 30 mm | 1.5 kV |
