R30-301 Series

Catalog

STANDOFF, HEX M-F, BRASS, M3, 20MM ROHS COMPLIANT: YES

Part	Material	Length - Overall [x]	Length - Overall [x]	Screw, Thread Size	Between Board Height	Between Board Height	Type	Gender	Plating	Diameter - Outside [diameter]	Diameter - Outside [custom]	Diameter - Outside [diameter]	Length - Overall	Length - Overall	Between Board Height	Between Board Height [z]	Between Board Height [z]
Harwin Inc. R30-3011202	Brass	20 mm	0.787 in	M3x0.5	12 mm	0.472 in	Hex Standoff	Female Male	Nickel	0.197 in	Hex	5 mm
Harwin Inc. R30-3011102	Brass			M3x0.5	11 mm	0.433 in	Hex Standoff	Female Male	Nickel	0.197 in	Hex	5 mm	0.748 in	19 mm
Harwin Inc. R30-3010602	Brass	14 mm	0.551 in	M3x0.5	6 mm	0.236 in	Hex Standoff	Female Male	Nickel	0.197 in	Hex	5 mm

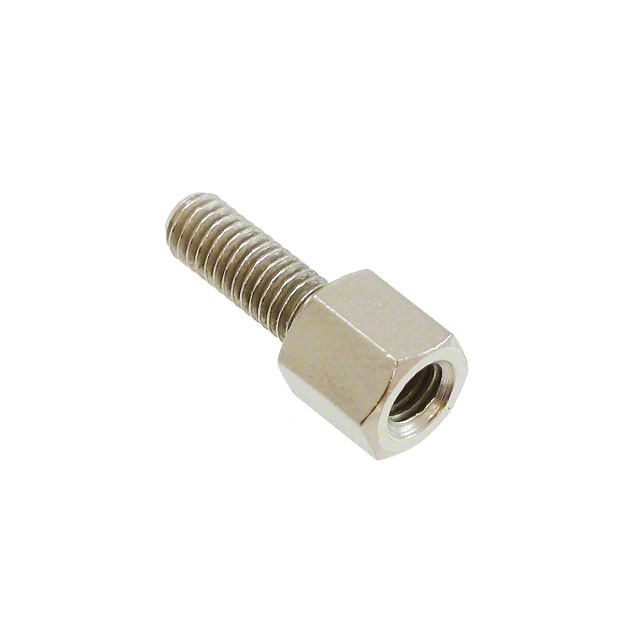

Harwin Inc. R30-3010502	Brass	13 mm	0.512 "	M3x0.5	0.197 in		Hex Standoff	Female Male	Nickel	0.197 in	Hex	5 mm			5 mm
Harwin Inc. R30-3011002	Brass	18 mm	0.709 "	M3x0.5			Hex Standoff	Female Male	Nickel	0.197 in	Hex	5 mm				0.394 in	10 mm
Harwin Inc. R30-3012002	Brass			M3x0.5	20 mm	0.787 "	Hex Standoff	Female Male	Nickel	0.197 in	Hex	5 mm
Harwin Inc. R30-3011402	Brass	22 mm	0.866 in	M3x0.5	14 mm	0.551 in	Hex Standoff	Female Male	Nickel	0.197 in	Hex	5 mm
Harwin Inc. R30-3011802	Brass	26 mm	1.024 in	M3x0.5			Hex Standoff	Female Male	Nickel	0.197 in	Hex	5 mm				0.709 in	18 mm
Harwin Inc. R30-3010402	Brass	12 mm	0.472 in	M3x0.5	4 mm	0.157 in	Hex Standoff	Female Male	Nickel	0.197 in	Hex	5 mm

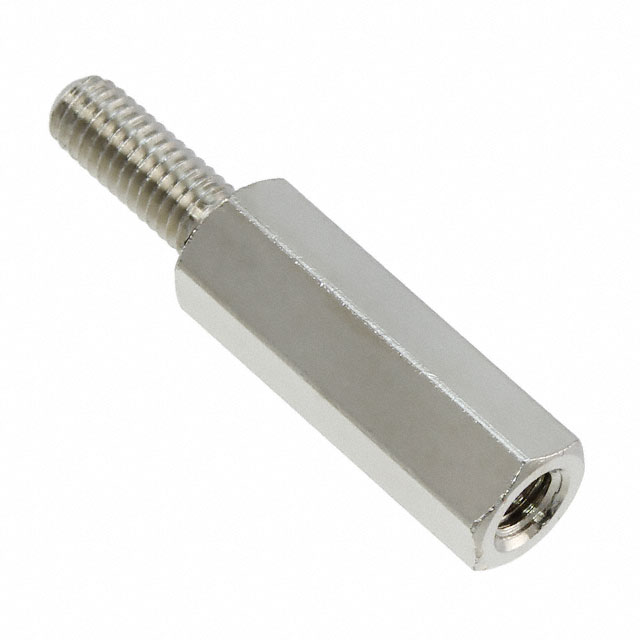

Harwin Inc. R30-3011502	Brass	23 mm	0.906 in	M3x0.5	15 mm		Hex Standoff	Female Male	Nickel	0.197 in	Hex	5 mm				0.591 in
