GL Series

Catalog

TOGGLE SWITCH, ON-ON, SPDT, ILLUMINATED, G SERIES, 100 MA, PANEL MOUNT

Part	Actuator Material	Electrical Life	Circuit	Current Rating (Amps)	Illumination	Bushing Thread	Mounting Type	Switch Function	Features	Actuator Type	Termination Style	Actuator Length [x]	Voltage Rating - AC	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Illumination Type, Color

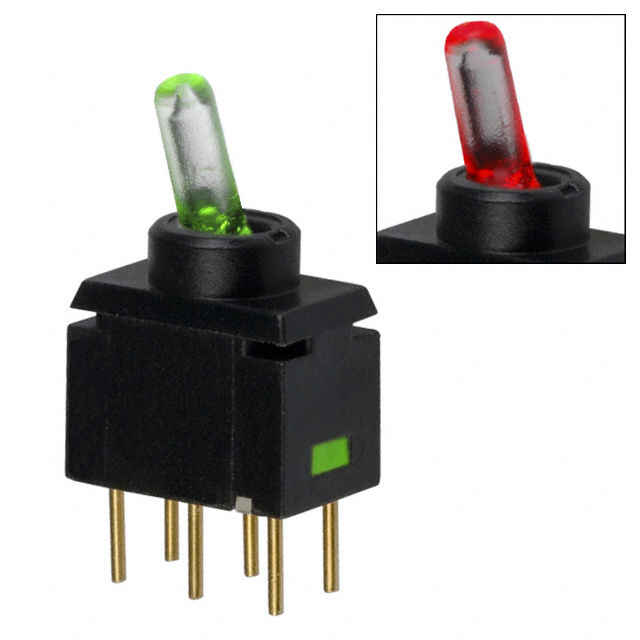

NKK Switches G12JPF	Glass Filled Nylon Polyamide (PA)	100000 Cycles	SPDT	0.4 VA	Illuminated	Unthreaded	Through Hole	On-On	Process Sealed	Standard Round	PC Pin	3.8 mm	28 V	2.1 VDC	85 °C	-25 °C	28 V	Green LED

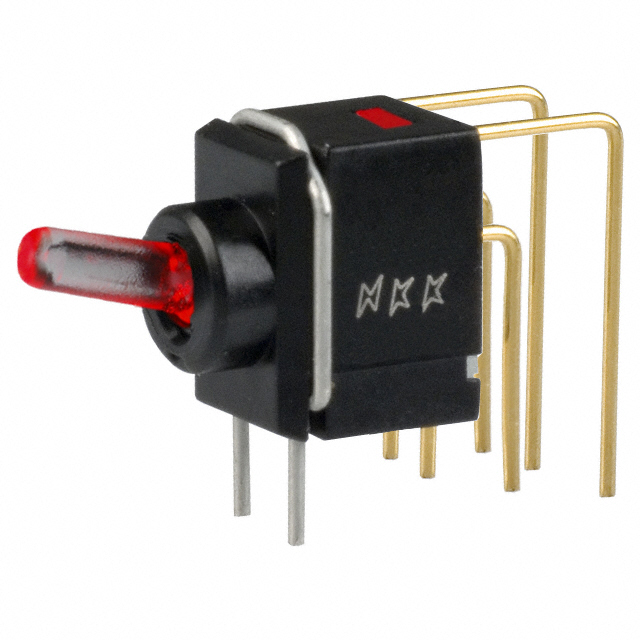

NKK Switches G12JVC	Glass Filled Nylon Polyamide (PA)	100000 Cycles	SPDT	0.4 VA	Illuminated	Unthreaded	Right Angle Through Hole Vertical	On-On	Process Sealed	Standard Round	PC Pin	3.8 mm	28 V	2 VDC	85 °C	-25 °C	28 V	LED Red
NKK Switches G13JVCF			SPDT	0.4 VA	Illuminated	Unthreaded	Right Angle Through Hole Vertical	On-Off-On	Process Sealed	Standard Round	PC Pin	3.8 mm	28 V	2 VDC 2.1 VDC	85 °C	-25 °C	28 V	Green/Red LED
