1002-1541 Series
Manufacturer: Radiall USA, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SMC F STR SDCL .086
| Part | Center Contact Plating | Dielectric Material | Operating Temperature (Max) | Operating Temperature (Min) | Body Material | Mating Cycles | Insertion Loss | Body Finish | Cable Group Diameter (Semi Rigid) | Cable Group | Frequency - Max | Number of Ports | Housing Color | Center Contact Material | Contact Termination | Shield Termination | Connector Style | Mounting Type | Fastening Type | Impedance | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

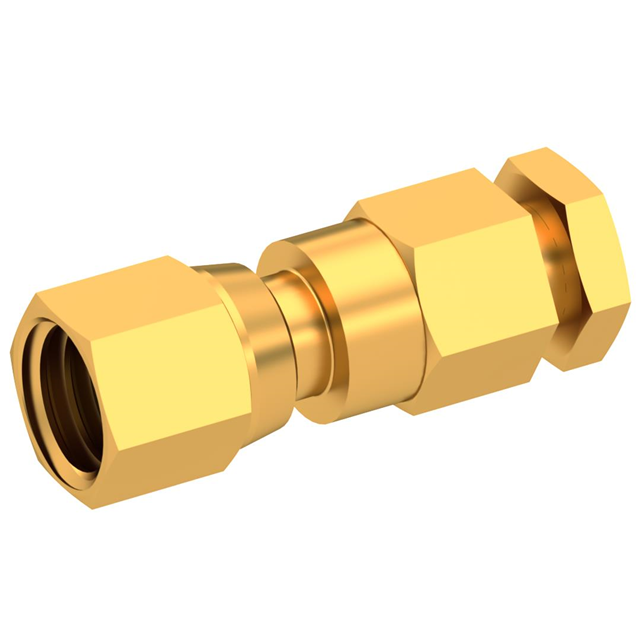

 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 105 °C | -65 °C | Brass | 500 cycles | 0.25 dB | Gold | 0.085 in | RG-405 | 10 GHz | 1 | Gold | Beryllium Copper | Solder | Clamp | SMC | Free Hanging (In-Line) | Threaded | 50 Ohm | Female Socket Plug |

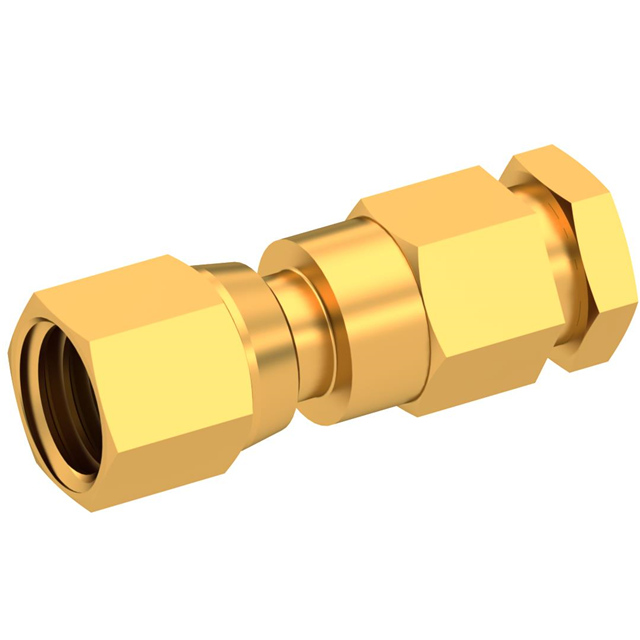

 Radiall USA, Inc. | Gold | Polytetrafluoroethylene (PTFE) | 105 °C | -65 °C | Brass | 500 cycles | 0.25 dB | Gold | 0.141 in | RG-402 | 10 GHz | 1 | Gold | Beryllium Copper | Solder | Clamp | SMC | Free Hanging (In-Line) | Threaded | 50 Ohm | Female Socket Plug |
