082-664 Series
Manufacturer: Amphenol RF
Beta
⌘K

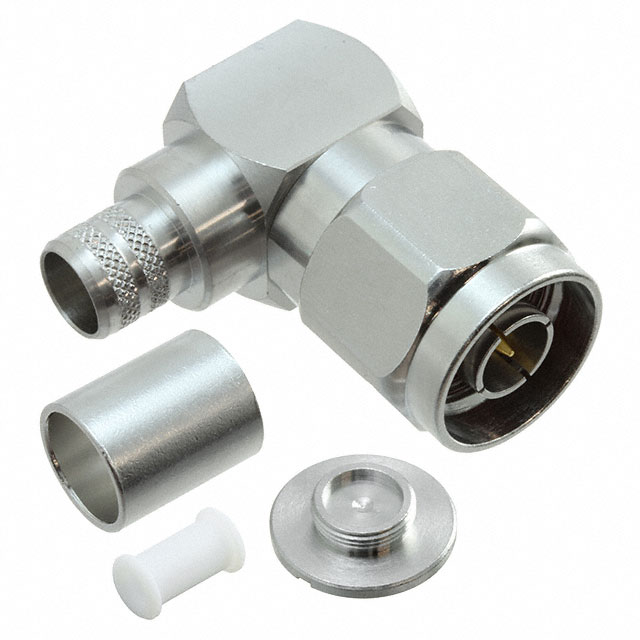

RF / COAXIAL CONNECTOR, LOW SIGNAL LOSS, N TYPE, RIGHT ANGLE PLUG, CRIMP, 50 OHM, LMR-400, BRASS
| Part | Dielectric Material | Center Contact Material | Contact Termination | Cable Group | Mounting Type | Includes | Connector Type | Housing Color | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Impedance | Shield Termination | Frequency - Max [Max] | Connector Style | Number of Ports | Mating Cycles | Body Material | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol RF | Polytetrafluoroethylene (PTFE) | Brass | Solder | LMR-400 | Free Hanging (In-Line) Right Angle | Connector End Cap Ferrule Insulator | Male Pin Plug | Silver | -65 ░C | 165 °C | White Bronze | Gold | 50 Ohms | Crimp | 6000 MHz | N Type | 1 | 500 | Brass | |

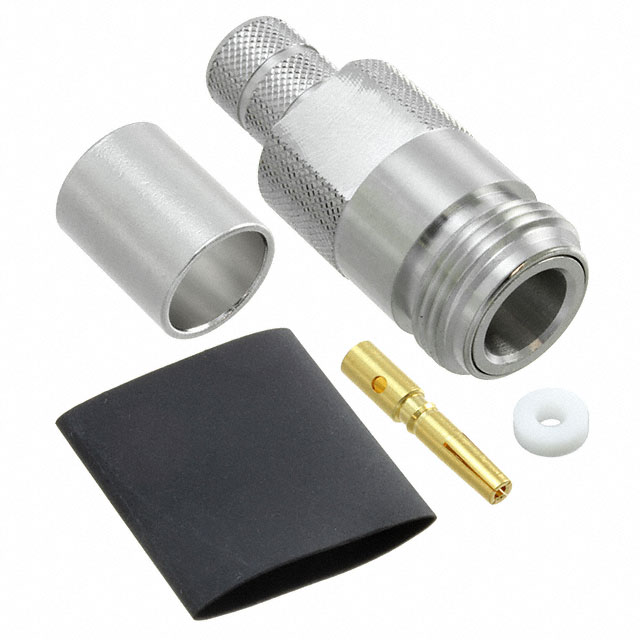

 Amphenol RF | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Solder | LMR-400 | Free Hanging (In-Line) | 1 Connector 1 Contact 1 Ferrule 1 Heat Shrink 1 Insulator | Female Socket Jack | Silver | -55 °C | 85 °C | White Bronze | Gold | 50 Ohms | Crimp | 6000 MHz | N Type | 1 | 500 | Brass | |
 Amphenol RF | Polytetrafluoroethylene (PTFE) | Beryllium Copper | Solder | LMR-400 | 1 Connector 1 Contact 1 Ferrule 1 Gasket 1 Heat Shrink 1 Insulator 1 Lockwasher 1 Nut | Female Socket Jack | Silver | -55 °C | 85 °C | White Bronze | Gold | 50 Ohms | Crimp | 6000 MHz | N Type | 1 | 500 | Brass | Bulkhead - Front Side Nut |
