280509 Series

Catalog

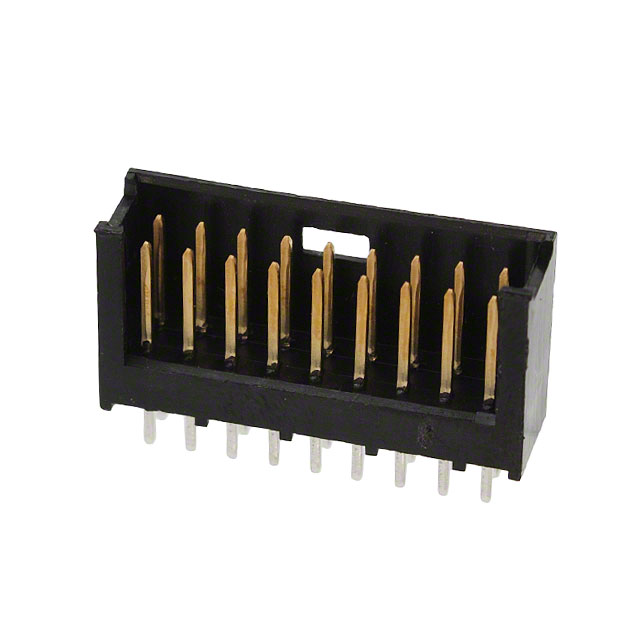

CONN HEADER VERT 18POS 2.54MM

Part	Contact Material	Termination	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Voltage Rating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Insulation Color	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Style	Pitch - Mating	Pitch - Mating	Contact Shape	Current Rating (Amps)	Overall Contact Length	Overall Contact Length	Contact Type	Material Flammability Rating	Insulation Height [z]	Insulation Height [z]	Number of Positions	Number of Rows	Mounting Type
TE Connectivity Raychem Cable Protection 280509-2	Brass	Solder	Thermoplastic	2.5 µm	98.4 µin	Header	40 V	All	-40 °C	80 C	Shrouded - 3 Wall	2.54 mm	0.1 in	Tin	Black	3.5 mm	0.138 in	Gold	Detent Lock	15 µin	0.38 µm	6.6 mm	0.26 in	Board to Board Cable	0.1 in	2.54 mm	Square	3 A	14.3 mm	0.563 "	Male Pin	UL94 V-0	12.6 mm	0.496 in	18	2	Through Hole
