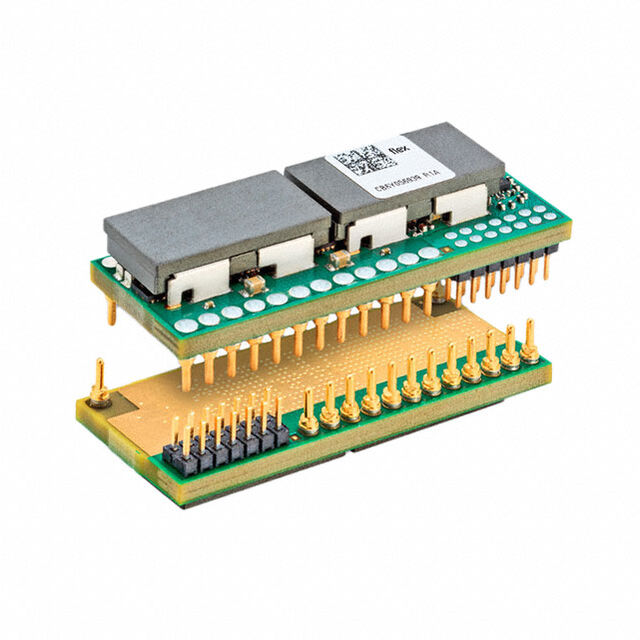

BMR467 Series

Catalog

DC DC CONVERTER 0.6-1.8V 216W

Part	Voltage - Input (Min) [Min]	Control Features	Type	Approval Agency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Features	Current - Output (Max) [Max]	Package / Case	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Mounting Type	Efficiency	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Standard Number	Applications	Power (Watts)	Voltage - Input (Max) [Max]
Flex Power Modules BMR4672110/001	7.5 V	Active High Enable	Non-Isolated PoL Module Digital	CB CSA IEC TUV UL	50.8 mm	0.75 "	0.32 "	19.1 mm	2 in	8.2 mm	Adjustable Output PMBus™ Remote Sense	120 A	26-SIP Module	0.6 V	1.8 V	Through Hole	93.2 %	1	125 °C	-45 °C	62368-1	ITE (Commercial)	216 W	14 V
Flex Power Modules BMR4671010/001	7.5 V	Active High Enable	Non-Isolated PoL Module Digital	CB CSA IEC TUV UL	50.8 mm	0.43 in	0.75 in	10.8 mm	2 in	19.1 mm	Adjustable Output PMBus™ Remote Sense	120 A	28-SMD Module	0.6 V	1.8 V	Surface Mount	93.2 %	1	125 °C	-45 °C	62368-1	ITE (Commercial)	216 W	14 V
Flex Power Modules BMR4670010/001	7.5 V	Active High Enable	Non-Isolated PoL Module Digital	CB CSA IEC TUV UL	50.8 mm	0.41 in	0.75 in	10.4 mm	2 in	19.1 mm	Adjustable Output PMBus™ Remote Sense	120 A	28-DIP Module	0.6 V	1.8 V	Through Hole	93.2 %	1	125 °C	-45 °C	62368-1	ITE (Commercial)	216 W	14 V
Flex Power Modules BMR4672010/001	7.5 V	Active High Enable	Non-Isolated PoL Module Digital	CB CSA IEC TUV UL	50.8 mm	0.75 "	0.32 "	19.1 mm	2 in	8.2 mm	Adjustable Output PMBus™ Remote Sense	120 A	26-SIP Module	0.6 V	1.8 V	Through Hole	93.2 %	1	125 °C	-45 °C	62368-1	ITE (Commercial)	216 W	14 V
