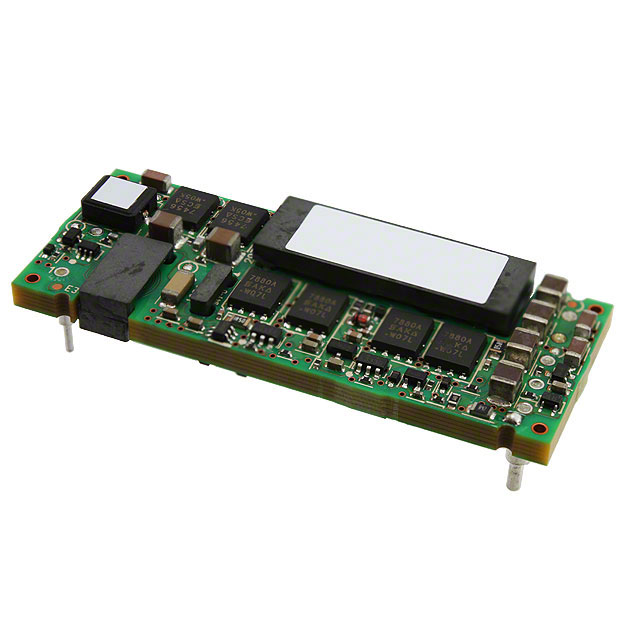

E48SH Series
Manufacturer: Delta Electronics
Beta
⌘K
DC DC CONVERTER 12V 120W
| Part | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Mounting Type | Power (Watts) | Features | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Applications | Package / Case | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Control Features | Voltage - Isolation | Voltage - Output 1 | Number of Outputs | Type | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 75 V | 10 A | Through Hole | 120 W | OCP OTP OVP Remote On/Off UVLO | -40 C | 123 °C | 36 V | ITE (Commercial) | 8-DIP Module 1/8 Brick | 22.9 mm | 9.4 mm | 0.37 in | 2.3 in | 58.4 mm | 0.9 in | Active Low Enable | 2250 VDC | 12 V | 1 | Isolated Module | |
Delta Electronics | 75 V | 30 A | Through Hole | 120 W | OCP OTP OVP Remote On/Off UVLO | -40 C | 129 °C | 36 V | ITE (Commercial) | 8-DIP Module 1/8 Brick | 22.9 mm | 9.4 mm | 0.37 in | 2.3 in | 58.4 mm | 0.9 in | Active Low Enable | 2250 VDC | 3.3 V | 1 | Isolated Module | 92 % |
Delta Electronics | 75 V | 20 A | Through Hole | 120 W | OCP OTP OVP Remote On/Off UVLO | -40 C | 129 °C | 36 V | ITE (Commercial) | 8-DIP Module 1/8 Brick | 22.9 mm | 9.4 mm | 0.37 in | 2.3 in | 58.4 mm | 0.9 in | Active Low Enable | 2250 VDC | 5 V | 1 | Isolated Module | 90 % |
Delta Electronics | 75 V | 20 A | Through Hole | 120 W | OCP OTP OVP Remote On/Off UVLO | -40 C | 129 °C | 36 V | ITE (Commercial) | 8-DIP Module 1/8 Brick | 22.9 mm | 9.4 mm | 0.37 in | 2.3 in | 58.4 mm | 0.9 in | Active Low Enable | 2250 VDC | 5 V | 1 | Isolated Module | 90 % |
Delta Electronics | 75 V | 50 A | Through Hole | 120 W | OCP OTP OVP Remote On/Off UVLO | -40 C | 123 °C | 36 V | ITE (Commercial) | 8-DIP Module 1/8 Brick | 22.9 mm | 9.4 mm | 0.37 in | 2.3 in | 58.4 mm | 0.9 in | Active Low Enable | 2250 VDC | 1.2 V | 1 | Isolated Module | 86.5 % |
Delta Electronics | 75 V | 10 A | Through Hole | 120 W | OCP OTP OVP Remote On/Off UVLO | -40 C | 123 °C | 36 V | ITE (Commercial) | 8-DIP Module 1/8 Brick | 22.8 mm | 9 mm | 0.35 in | 2.3 in | 58.4 mm | 0.9 in | Active Low Enable | 2250 VDC | 12 V | 1 | Isolated Module | 93 % |
Delta Electronics | 75 V | 40 A | Through Hole | 120 W | OCP OTP OVP Remote On/Off UVLO | -40 C | 125 °C | 36 V | ITE (Commercial) | 8-DIP Module 1/8 Brick | 22.8 mm | 9 mm | 0.35 in | 2.3 in | 58.4 mm | 0.9 in | Active Low Enable | 2250 VDC | 1.5 V | 1 | Isolated Module | 89 % |
