BB26AB Series

Catalog

PROCESS SEALED SUBMINIATURE ANTISTATIC PUSHBUTTON

Part	Electrical Life	Mechanical Life	Current Rating (Amps)	Switch Function	Mounting Type	Circuit	Color - Actuator/Cap	Termination Style	Actuator Marking	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - AC	Voltage Rating - DC	Type	Features
NKK Switches BB26AB-FC	25000 Steps	25000 Steps	0.4 VA	On-On	Through Hole	DPDT	Red	PC Pin	No Marking	Button Round	85 °C	-30 ░C	28 V	28 V	Standard	Antistatic
NKK Switches BB26AB-HC	25000 Steps	25000 Steps	0.4 VA	On-On	Through Hole	DPDT	Red	PC Pin	No Marking	Button Round	85 °C	-30 ░C	28 V	28 V	Standard	Antistatic
NKK Switches BB26AB-HB	25000 Steps	25000 Steps	0.4 VA	On-On	Through Hole	DPDT	White	PC Pin	No Marking	Button Round	85 °C	-30 ░C	28 V	28 V	Standard	Antistatic
NKK Switches BB26AB-FA	25000 Steps	25000 Steps	0.4 VA	On-On	Through Hole	DPDT	Black	PC Pin	No Marking	Button Round	85 °C	-30 ░C	28 V	28 V	Standard	Antistatic

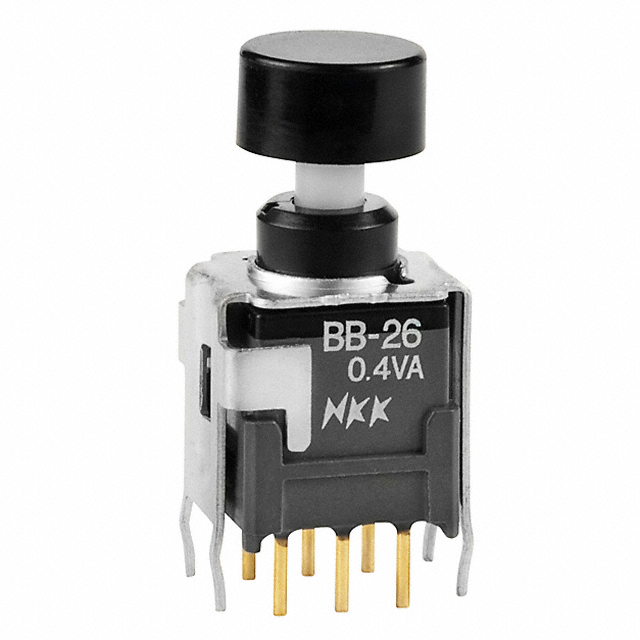

NKK Switches BB26AB-HA	25000 Steps	25000 Steps	0.4 VA	On-On	Through Hole	DPDT	Black	PC Pin	No Marking	Button Round	85 °C	-30 ░C	28 V	28 V	Standard	Antistatic
