50.616 Series

Catalog

CABLE GLAND 5-10MM M16 POLYAMIDE

Part	Operating Temperature [Min]	Operating Temperature [Max]	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Includes	Thread Size	Ingress Protection	Color	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Material	Outside Cable Diameter (Min) [Min] [diameter]

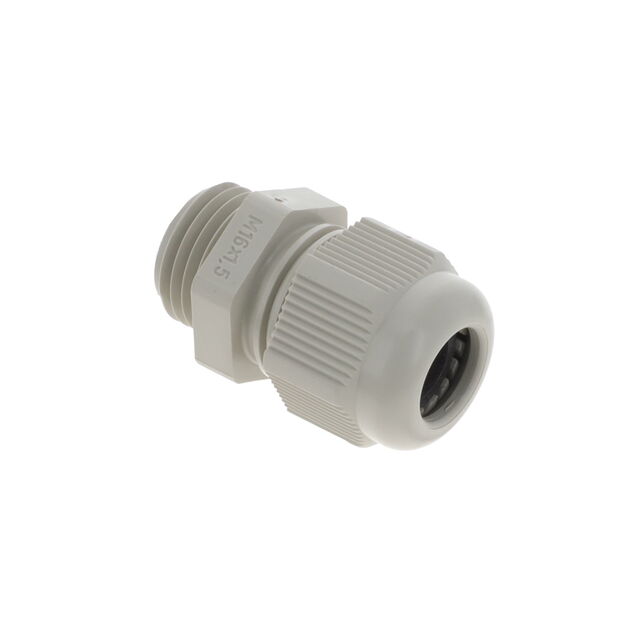

Jacob GmbH 50.616 PA/FL	-40 C	100 °C	10 mm	0.394 in	Sealing Ring	M16x1.5	IP68 - Dust Tight Waterproof	Gray	Cable Gland	0.197 in	5 mm	0.315 "	8 mm
Jacob GmbH 50.616 M/EMVDL	-40 C	100 °C			O-Ring Seal	M16x1.5	IP68 - Dust Tight Waterproof	Silver	Cable Gland	0.197 in	5 mm	0.394 in	10 mm	0.354 in	9 mm	Brass Nickel Plated

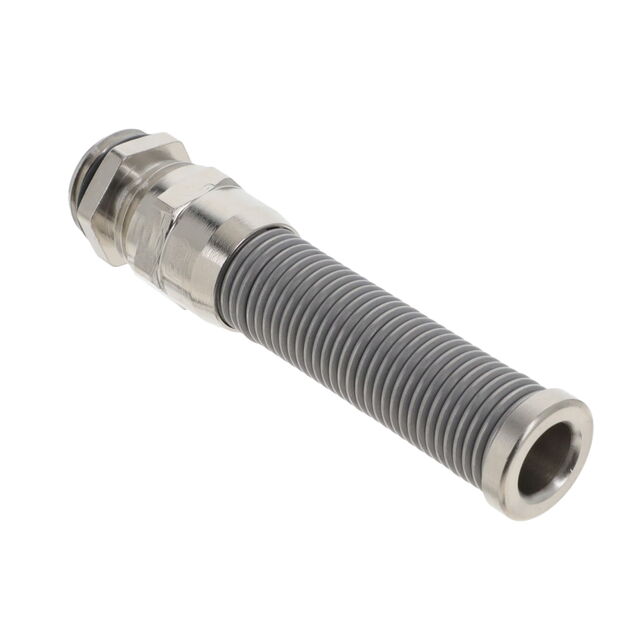

Jacob GmbH 50.616 M/BS	-20 ░C	100 °C			O-Ring Seal Strain Relief	M16x1.5	IP68 - Dust Tight Waterproof	Silver	Cable Gland	0.197 in	5 mm	0.197 in	5 mm	0.354 in	9 mm	Brass Nickel Plated
Jacob GmbH 50.616 PA7035	-40 C	100 °C			Sealing Ring	M16x1.5	IP68 - Dust Tight Waterproof	Gray	Cable Gland	0.197 in	5 mm	0.315 "	8 mm	0.374 in	9.5 mm
Jacob GmbH 50.616 PA/SW	-40 C	100 °C			Sealing Ring	M16x1.5	IP68 - Dust Tight Waterproof	Black	Cable Gland	0.197 in	5 mm	0.315 "	8 mm	0.374 in	9.5 mm
Jacob GmbH 50.616 PA7035L	-40 C	100 °C			Sealing Ring	M16x1.5	IP68 - Dust Tight Waterproof	Gray	Cable Gland	0.197 in	5 mm	0.591 in	15 mm	0.374 in	9.5 mm

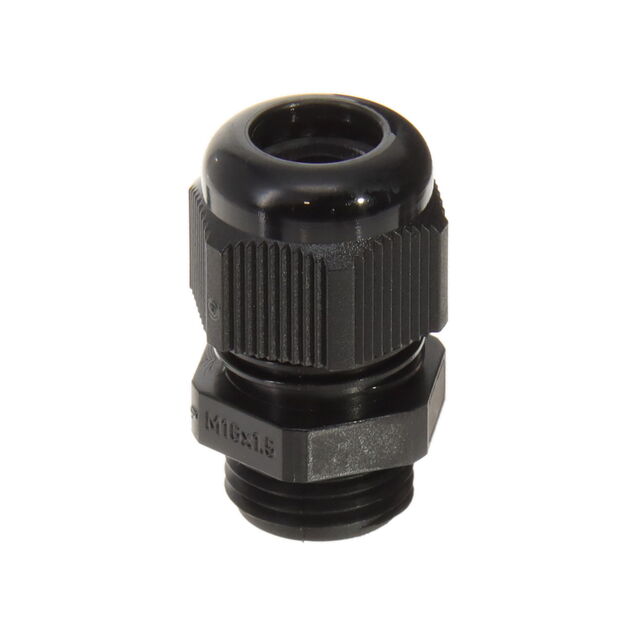

Jacob GmbH 50.616 PA/RSW	-40 C	100 °C	10 mm	0.394 in	Sealing Ring	M16x1.5	IP68 - Dust Tight Waterproof	Black	Cable Gland		0.118 in	0.315 "	8 mm				3 mm

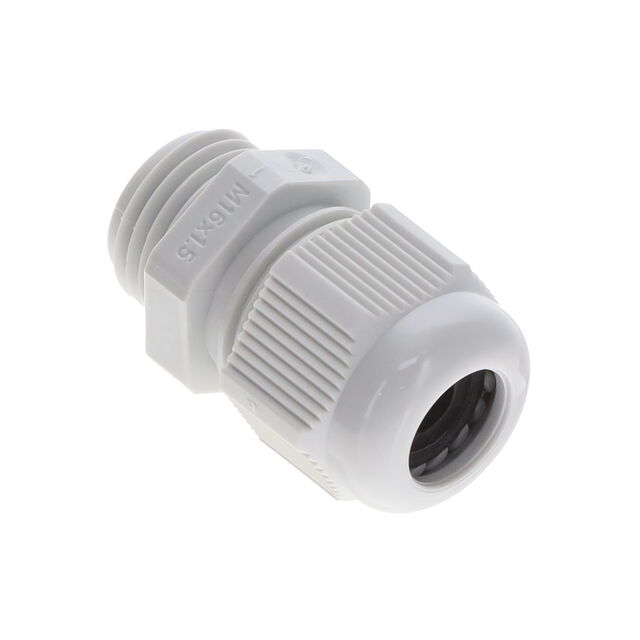

Jacob GmbH 50.616PA/R7035	-40 C	100 °C	10 mm	0.394 in	Sealing Ring	M16x1.5	IP68 - Dust Tight Waterproof	Gray	Cable Gland		0.118 in	0.315 "	8 mm				3 mm

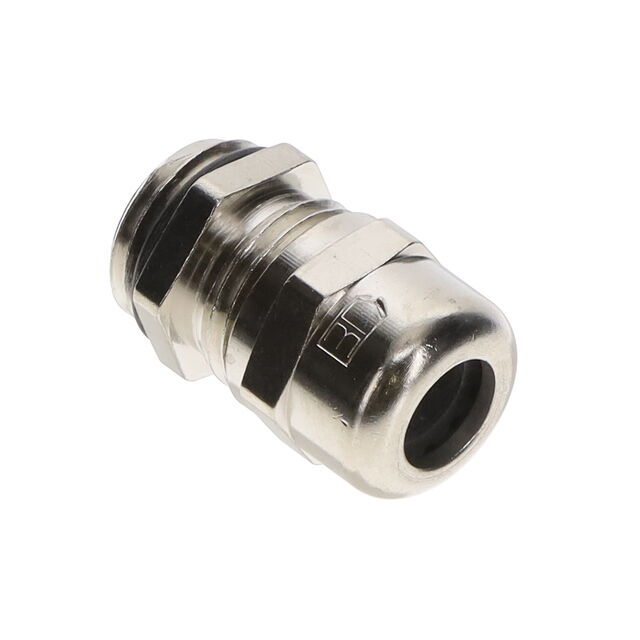

Jacob GmbH 50.616 M	-40 C	100 °C			O-Ring Seal	M16x1.5	IP68 - Dust Tight Waterproof	Silver	Cable Gland	0.197 in	5 mm	0.197 in	5 mm	0.354 in	9 mm	Brass Nickel Plated
Jacob GmbH 50.616 M/EMVD	-40 C	100 °C			O-Ring Seal	M16x1.5	IP68 - Dust Tight Waterproof	Silver	Cable Gland	0.197 in	5 mm	0.197 in	5 mm	0.354 in	9 mm	Brass Nickel Plated
