0ZCF Series

Resettable Fuses - PPTC AEC-2000 SM PTC 2920 size 4A

Manufacturer: Bel Fuse Inc.

Catalog

Resettable Fuses - PPTC AEC-2000 SM PTC 2920 size 4A

Catalog

Resettable Fuses - PPTC AEC-2000 SM PTC 2920 size 4A

Part	Type	Mounting Type	Thickness (Max)	Thickness (Max) [Max] [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Resistance - Initial (Ri) (Min) [Min]	Current - Trip (It)	Resistance - Post Trip (R1) (Max) [Max]	Current - Max [Max]	Qualification	Voltage - Max [Max]	Time to Trip	Package / Case	Current - Hold (Ih) (Max) [Max]	Thickness (Max) [Max] [z]	Thickness (Max) [Max]	Thickness (Max) [Max]
Bel Fuse Inc. 0ZCF0400FF2A	Polymeric	Surface Mount	1.5 mm	0.059 in	7.36 mm	0.202 in	0.29 "	5.12 mm	Automotive	85 °C	-40 C	10 mOhms	8 A	0.04 Ohms	100 A	AEC-Q200	16 V	4 s	2920 (7351 Metric) Concave	4 A

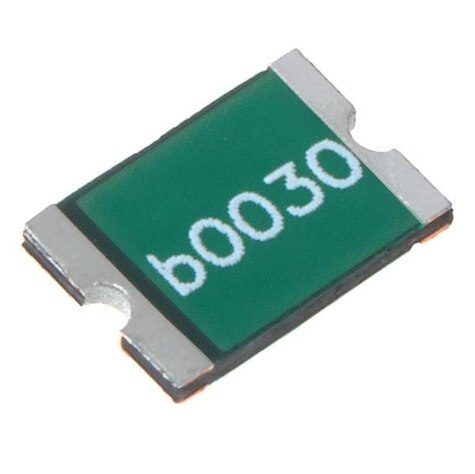

Bel Fuse Inc. 0ZCF0500FF2A	Polymeric	Surface Mount	1.5 mm	0.059 in	7.36 mm	0.202 in	0.29 "	5.12 mm	Automotive	85 °C	-40 C	5 mOhms	10 A	25 mOhms	100 A	AEC-Q200	16 V	5 s	2920 (7351 Metric) Concave	5 A
Bel Fuse Inc. 0ZCF0110AF2A	Polymeric	Surface Mount		0.067 "	7.36 mm	0.202 in	0.29 "	5.12 mm	Automotive	85 °C	-40 C	90 mOhms	2.2 A	410 mOhms	100 A	AEC-Q200	60 V	500 ms	2920 (7351 Metric) Concave	1.1 A	1.7 mm
Bel Fuse Inc. 0ZCF0330FF2C	Polymeric	Surface Mount			7.36 mm	0.202 in	0.29 "	5.12 mm	Automotive	85 °C	-40 C	10 mOhms	5.5 A	48 mOhms	100 A	AEC-Q200	24 V	20 s	2920 (7351 Metric) Concave	3.3 A		1.15 mm	0.045 in
