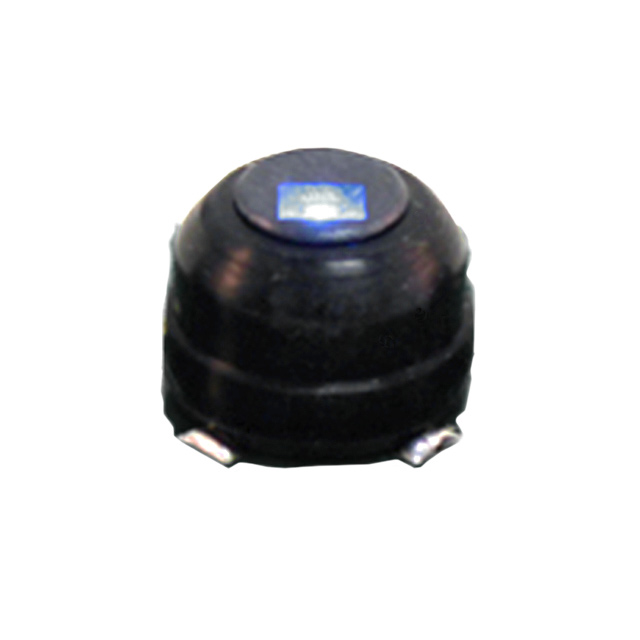

14SP-L1 Series

Catalog

PUSHBUTTON SWITCH, SPST-NO, 30 VDC, 100 MA, SOLDER

Part	Mechanical Life	Electrical Life	Illumination Type, Color	Features	Circuit	Termination Style	Mounting Type	Type	Switch Function	Color - Actuator/Cap	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Actuator Type	Actuator Marking	Illumination Voltage (Nominal)	Voltage Rating - DC	Current Rating (Amps)
Grayhill Inc. 14SP-L1-03-O	100000 Cycles	100000 Cycles	LED Orange	Board Guide	SPST-NO	SMD (SMT) Tab	Surface Mount	Keyswitch Illuminated	Off-Mom	Clear	85 °C	-40 C	IP67 - Dust Tight Waterproof	Button Round	No Marking	2 VDC	30 V	100 mA
Grayhill Inc. 14SP-L1-03-Y	100000 Cycles	100000 Cycles	LED Yellow	Board Guide	SPST-NO	SMD (SMT) Tab	Surface Mount	Keyswitch Illuminated	Off-Mom	Clear	85 °C	-40 C	IP67 - Dust Tight Waterproof	Button Round	No Marking	2 VDC	30 V	100 mA
Grayhill Inc. 14SP-L1-02-G	200000 Cycles	200000 Cycles	Green LED	Board Guide	SPST-NO	SMD (SMT) Tab	Surface Mount	Keyswitch Illuminated	Off-Mom	Clear	85 °C	-40 C	IP67 - Dust Tight Waterproof	Button Round	No Marking	2.85 VDC	30 V	100 mA
Grayhill Inc. 14SP-L1-02-W	200000 Cycles	200000 Cycles	LED White	Board Guide	SPST-NO	SMD (SMT) Tab	Surface Mount	Keyswitch Illuminated	Off-Mom	Clear	85 °C	-40 C	IP67 - Dust Tight Waterproof	Button Round	No Marking	2.85 VDC	30 V	100 mA
