SMRR7016C Series

Catalog

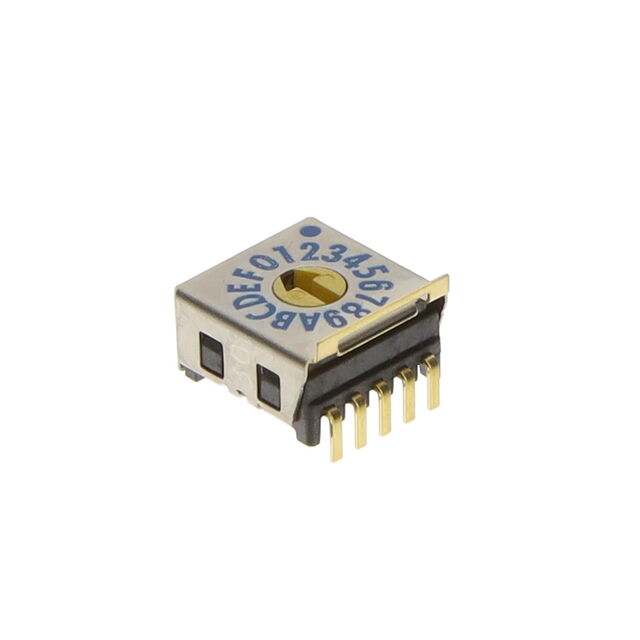

SWITCH ROTARY DIP HEX 0.03A 15V

Part	Length	Length	Mechanical Life	Electrical Life	Washable	Voltage Rating	Termination Style	Mounting Type	Contact Finish	Current Rating (Amps)	Actuator Level	Actuator Type	Pitch	Pitch	Circuit	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Height Above Board [z]	Height Above Board [z]
Nidec Components Corporation SMRR7016C-1	0.295 in	7.5 mm	10000 Steps	10000 Cycles		15 VDC	Gull Wing	Right Angle Surface Mount	Gold	30 mA	Flush Recessed	Rotary for Tool	2.54 mm	0.1 "	Hexadecimal	16	85 °C	-25 °C	0.319 in	8.1 mm
Nidec Components Corporation SMRR7016C-1E	0.295 in	7.5 mm	10000 Steps	10000 Cycles		15 VDC	Gull Wing	Right Angle Surface Mount	Gold	30 mA	Flush Recessed	Rotary for Tool	2.54 mm	0.1 "	Hexadecimal	16	85 °C	-25 °C	0.319 in	8.1 mm
