TP-VR Series

Catalog

DC/DC CONVERTER 24V 70W

Part	Efficiency	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Current - Output (Max) [Max]	Number of Outputs	Voltage - Input (Max) [Max]	Voltage - Output 1	Voltage - Input (Min) [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Voltage - Isolation	Power (Watts)	Number of Cells	Power - Max [Max]	Voltage - Nominal	Battery Cell Size	Termination Style	Charge Current - Max [Max]	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [y]	Size / Dimension [z]
Tycon Systems Inc. TP-VRHP-1224	85 %	Enclosed	76.2 mm	1.5 in	5.24 "	38.1 mm	133.1 mm	3 "	Chassis Mount DIN Rail	2.9 A	1	15 V	24 V	10 VDC	-30 ░C	65 °C	ITE (Commercial)	1.5 kV	70 W

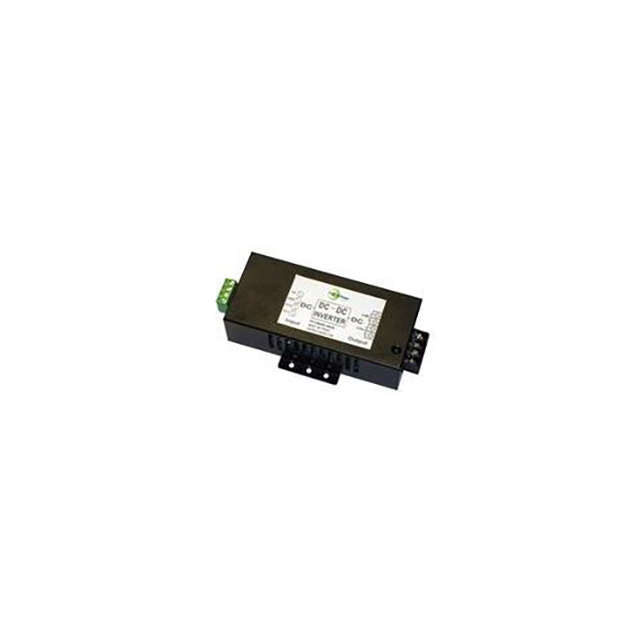

Tycon Systems Inc. TP-VRHP-4824	85 %	Enclosed	76.2 mm	1.5 in	5.24 "	38.1 mm	133.1 mm	3 "	Chassis Mount DIN Rail	2.9 A	1	72 V	24 V	36 V	-30 ░C	65 °C	ITE (Commercial)	1.5 kV	70 W
Tycon Systems Inc. TP-VRHP-4856	85 %	Enclosed	76.2 mm	1.5 in	5.24 "	38.1 mm	133.1 mm	3 "	Chassis Mount DIN Rail	1.25 A	1	72 V	56 V	36 V	-30 ░C	65 °C	ITE (Commercial)	1.5 kV	70 W

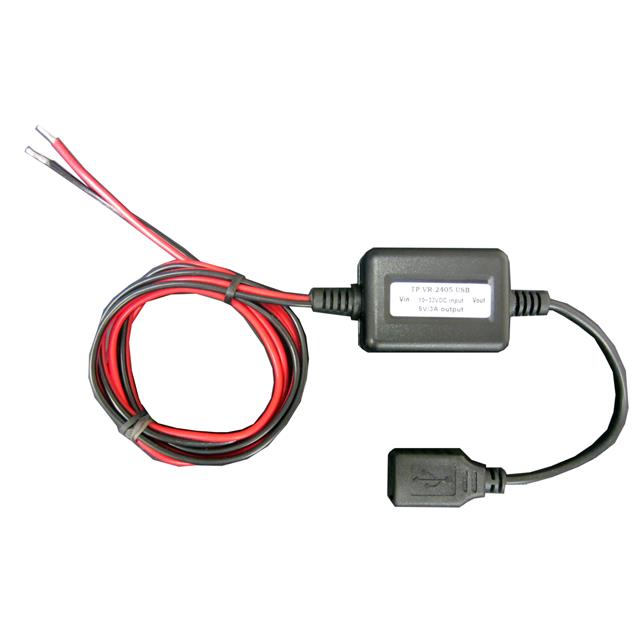

Tycon Systems Inc. TP-VR-2405-USB		USB In-Vehicle	31.75 mm	1 in	2.75 in	25.4 mm	69.85 mm	1.25 in	Custom						-40 C	65 °C				1	5 W	5 V	5 V	USB A Receptacle	1 A	10 V	32 VDC

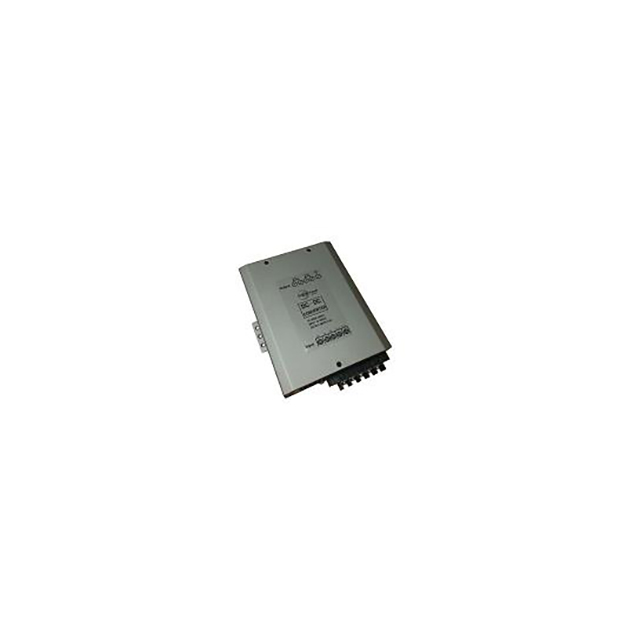

Tycon Systems Inc. TP-VRHP-2456-250	83 % 85 %	Enclosed	76.2 mm 149.9 mm	1.5 in 1.7 "	5.24 " 7.4 in	38.1 mm 43.2 mm	133.1 mm 188 mm	3 " 5.9 "	Chassis Mount DIN Rail	4.46 A	1	36 V	56 V	18 V	-30 ░C	65 °C	ITE (Commercial)	1.5 kV	250 W
Tycon Systems Inc. TP-VRHP-2424	85 %	Enclosed	76.2 mm	1.5 in	5.24 "	38.1 mm	133.1 mm	3 "	Chassis Mount DIN Rail	2.9 A	1	36 V	24 V	18 V	-30 ░C	65 °C	ITE (Commercial)	1.5 kV	70 W
Tycon Systems Inc. TP-VRHP-4856-250	85 %	Enclosed	149.9 mm	1.7 "	5.9 " 7.4 in	43.2 mm	149.9 mm 188 mm	5.9 " 7.4 "	Chassis Mount DIN Rail	4.46 A	1	72 V	56 V	36 V	-30 ░C	65 °C	ITE (Commercial)	1.5 kV	250 W									188 mm	43.2 mm
Tycon Systems Inc. TP-VR-2405	80 %	Enclosed	31.8 mm	1 in	2.75 in	25.4 mm	69.9 mm	1.25 in	Chassis Mount	3 A	1	32 V	5 V	10 VDC	-40 C	65 °C	ITE (Commercial)		15 W
Tycon Systems Inc. TP-VRHP-1256	85 %	Enclosed	76.2 mm	1.5 in	5.24 "	38.1 mm	133.1 mm	3 "	Chassis Mount DIN Rail	1.25 A	1	15 V	56 V	10 VDC	-30 ░C	65 °C	ITE (Commercial)	1.5 kV	70 W
Tycon Systems Inc. TP-VR-2412	80 %	Enclosed	31.8 mm	1 in	2.75 in	25.4 mm	69.9 mm	1.25 in	Chassis Mount	1.25 A	1	32 V	12 V	18 V	-40 C	65 °C	ITE (Commercial)		15 W
