AN260 Series

Catalog

IC AMP CEL 824MHZ-960MHZ 11WLCSP

Part	Noise Figure	P1dB	Mounting Type	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Test Frequency	Gain	Voltage - Supply	Current - Supply	Frequency [Min]	Frequency [Max]	RF Type	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]

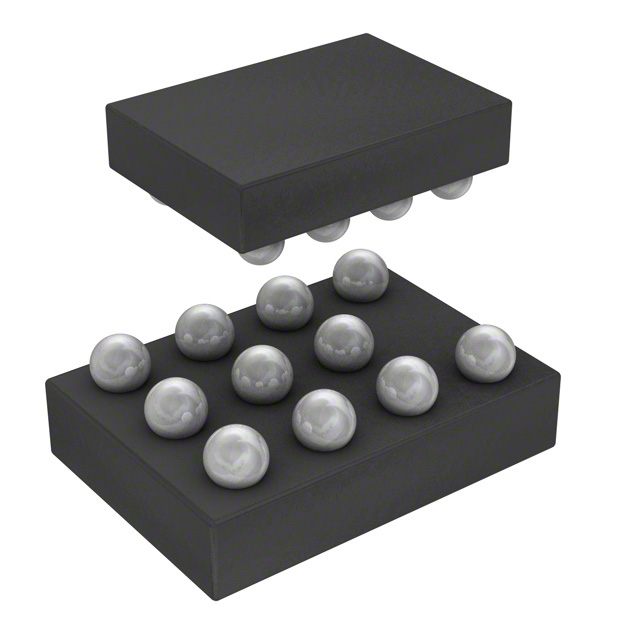

Panasonic Electronic Components AN26065A-PR	1.4 dB	-16 dBm	Surface Mount	1.16	11-WLCSP	0.86	2.14 GHz	16.5 dBi	2.85 V	4.7 mA	1.71 GHz 824 MHz	2.17 GHz 960 MHz	Cellular UMTS	11-XFBGA WLCSP
Panasonic Electronic Components AN26013A-NL	1.3 dB	-10 dBm	Surface Mount		SSMINI-5DC		1.96 GHz	15.5 dBi	2.8 V	10 mA	1.9 GHz	2.4 GHz	WiMAX WLAN	SOT-665

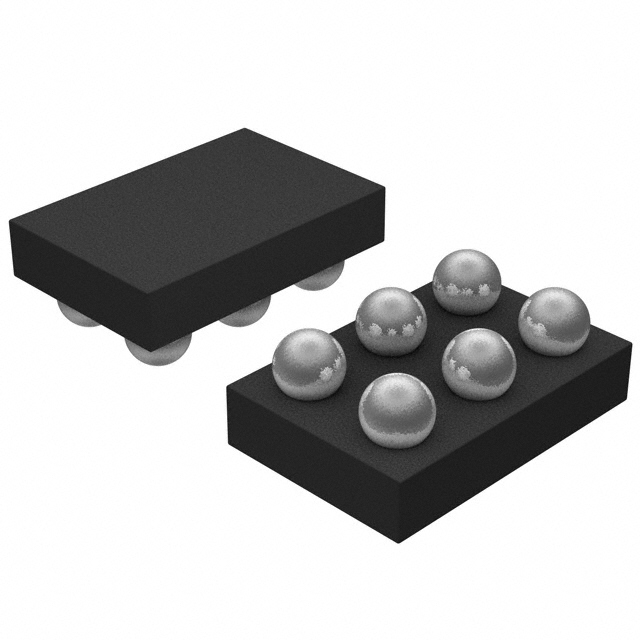

Panasonic Electronic Components AN26032A-PR	1.3 dB	-10 dBm	Surface Mount	0.56	6-WLCSP	0.86	620 MHz	14 dBi		4 mA	470 MHz	770 MHz	UHF	6-XFBGA WLCSP	2.5 V	3 V

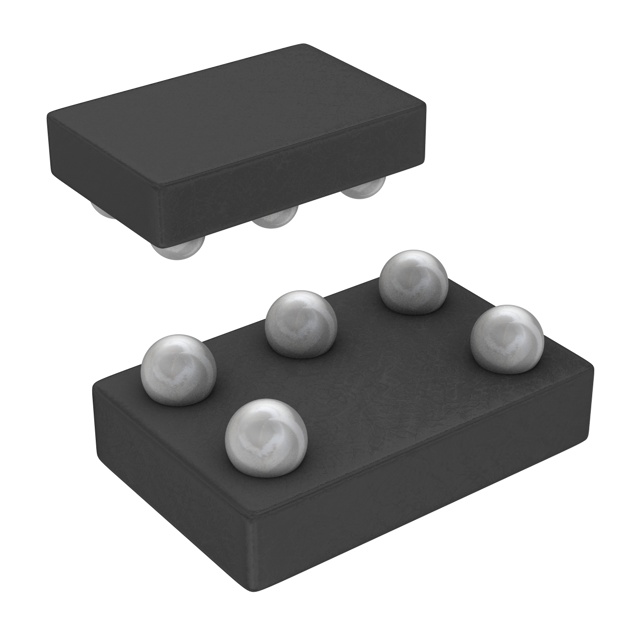

Panasonic Electronic Components AN26027A-PR	1.3 dB	-6 dBm	Surface Mount	0.56	5-WLCSP	0.86	620 MHz	15 dB		3 mA	470 MHz	770 MHz	UHF		2.5 V	3 V
Panasonic Electronic Components AN26011A-NL	1.4 dB	-7 dBm	Surface Mount		SSMINI-5DC		450 MHz	16 dBi	2.8 V	11.5 mA	400 MHz	900 MHz	LNA WLAN WLL	SOT-665
Panasonic Electronic Components AN26018A-NL	1.5 dB	-5 dBm	Surface Mount		SSMINI-5DC		470 MHz	14.5 dBi		3 mA	400 MHz	800 MHz	UHF	SOT-665	2.7 V	3 V
