R73PN Series
Manufacturer: KEMET
Beta
⌘K

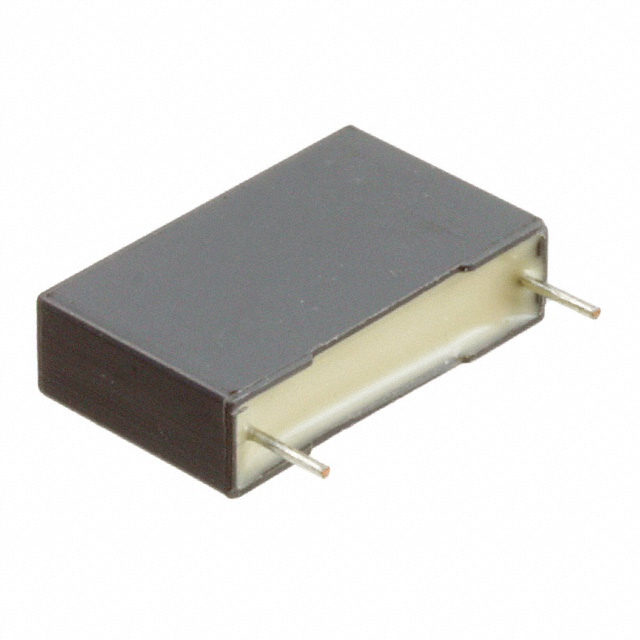

CAP FILM 0.047UF 5% 630VDC RAD
| Part | Ratings | Lead Spacing | Lead Spacing | Voltage Rating - AC | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Package / Case | Dielectric Material | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Applications | Mounting Type | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | AEC-Q200 | 0.886 in | 22.5 mm | 300 V | 16.1 mm | 0.633 " | Radial | Polypropylene (PP) Metallized | PC Pins | -55 C | 105 ░C | Automotive DC Filtering DC Link DV/DT High Frequency High Pulse Switching | Through Hole | 7 mm | 26.5 mm | 0.276 in | 1.043 in | 5 % |
