PSK-S15 Series

Manufacturer: CUI Inc.

Catalog

AC/DC CONVERTER 3.3V 8.9W

Part	Type	Mounting Type	Voltage - Output 1	Features	Efficiency	Power (Watts)	Voltage - Isolation	Approval Agency	Applications	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Current - Output 1	Standard Number	DC Voltage - Input (Max) [Max]	AC Voltage - Input [Max]	AC Voltage - Input [Min]	DC Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Input Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Package / Case	Load Regulation	Line Regulation
CUI Inc. PSK-S15C-3-T	Enclosed	Chassis Mount	3.3 V	Universal Input	72 %	8.9 W	4000 V	CB Scheme EN IEC UL	ITE (Commercial)	85 VAC 100 V	264 VAC 370 VDC	1	2.7 A	55024 55032 Class A 60950-1 61000-3-2 62368-1

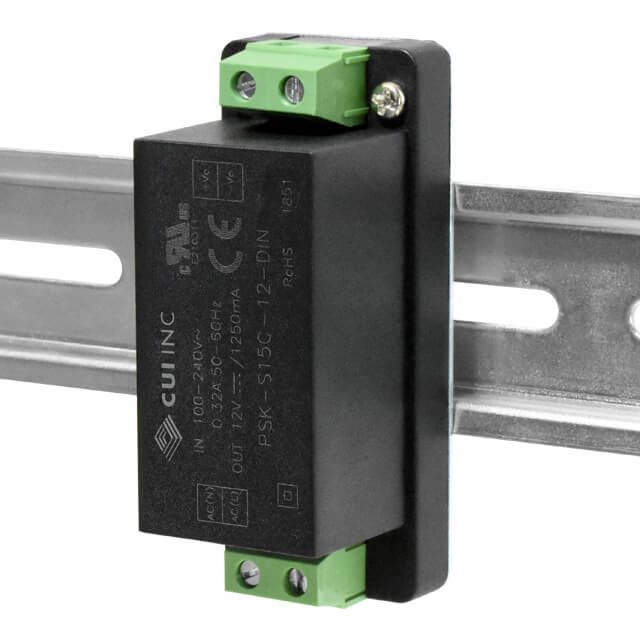

CUI Inc. PSK-S15C-12-DIN			12 V	Universal Input	80 %	15 W	4000 V	CB Scheme EN IEC UL	ITE (Commercial)			1		55024 55032 Class A 60950-1 61000-3-2 62368-1	370 V	264 VAC	85 VAC	100 V	1.25 A	AC or DC	1.24 in	1.45 in	31.5 mm	36.9 mm	2.99 in	76 mm
CUI Inc. PSK-S15C-5	Enclosed	Through Hole	5 V	Universal Input	76 %	14 W		CB Scheme EN IEC UL	ITE (Commercial)	85 VAC 100 V	264 VAC 370 VDC	1		55024 55032 Class A 60950-1 61000-3-2 62368-1					2.7 A		1.13 "	2.12 in	28.8 mm	53.8 mm	0.93 "	23.5 mm	4-DIP Module	±1%	0.5 %
CUI Inc. PSK-S15C-15-T	Enclosed	Chassis Mount	15 V	Universal Input	81 %	15 W	4000 V	CB Scheme EN IEC UL	ITE (Commercial)	85 VAC 100 V	264 VAC 370 VDC	1	1 A	55024 55032 Class A 60950-1 61000-3-2 62368-1
CUI Inc. PSK-S15C-3-DIN			3.3 V	Universal Input	72 %	8.9 W	4000 V	CB Scheme EN IEC UL	ITE (Commercial)			1		55024 55032 Class A 60950-1 61000-3-2 62368-1	370 V	264 VAC	85 VAC	100 V	2.7 A	AC or DC	1.24 in	1.45 in	31.5 mm	36.9 mm	2.99 in	76 mm
CUI Inc. PSK-S15C-24	Enclosed	Through Hole	24 V	Universal Input	81 %	15 W		CB Scheme EN IEC UL	ITE (Commercial)	85 VAC 100 V	264 VAC 370 VDC	1		55024 55032 Class A 60950-1 61000-3-2 62368-1					625 mA		1.13 "	2.12 in	28.8 mm	53.8 mm	0.93 "	23.5 mm	4-DIP Module	±1%	0.5 %
CUI Inc. PSK-S15C-24-DIN			24 V	Universal Input	81 %	15 W	4000 V	CB Scheme EN IEC UL	ITE (Commercial)			1		55024 55032 Class A 60950-1 61000-3-2 62368-1	370 V	264 VAC	85 VAC	100 V	625 mA	AC or DC	1.24 in	1.45 in	31.5 mm	36.9 mm	2.99 in	76 mm
CUI Inc. PSK-S15C-15	Enclosed	Through Hole	15 V	Universal Input	81 %	15 W		CB Scheme EN IEC UL	ITE (Commercial)	85 VAC 100 V	264 VAC 370 VDC	1		55024 55032 Class A 60950-1 61000-3-2 62368-1					1 A		1.13 "	2.12 in	28.8 mm	53.8 mm	0.93 "	23.5 mm	4-DIP Module	±1%	0.5 %
