160101 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

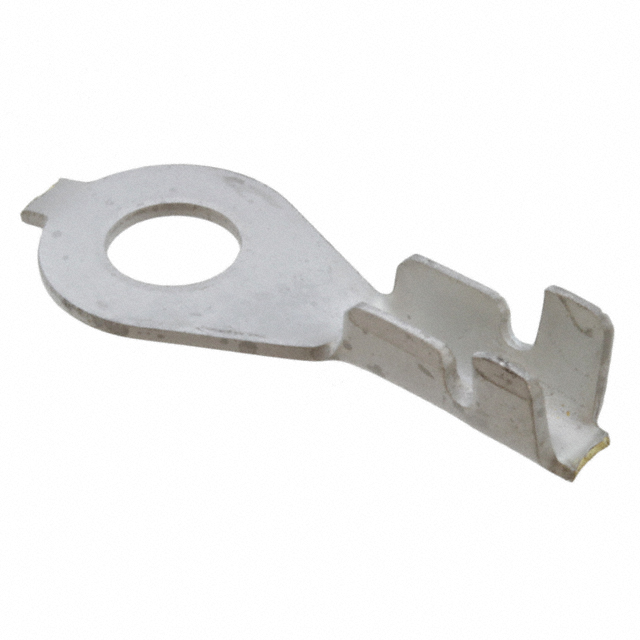

CONN RING CIRC 16-20AWG #8 CRIMP
| Part | Termination | Contact Material | Insulation | Terminal Type | Length - Overall | Length - Overall | Stud/Tab Size | Width - Outer Edges [y] | Width - Outer Edges [y] | Mounting Type | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Thickness | Thickness | Contact Finish | Wire Gauge [Min] | Wire Gauge [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | Steel | Non-Insulated | Circular | 19.91 mm | 0.784 in | 8 Stud | 8.69 mm | 0.342 in | Free Hanging (In-Line) | 0.08 in | 3.05 mm | 0.12 in | 2.03 mm | 0.64 mm | 0.025 in | Nickel | 16 AWG | 20 AWG |

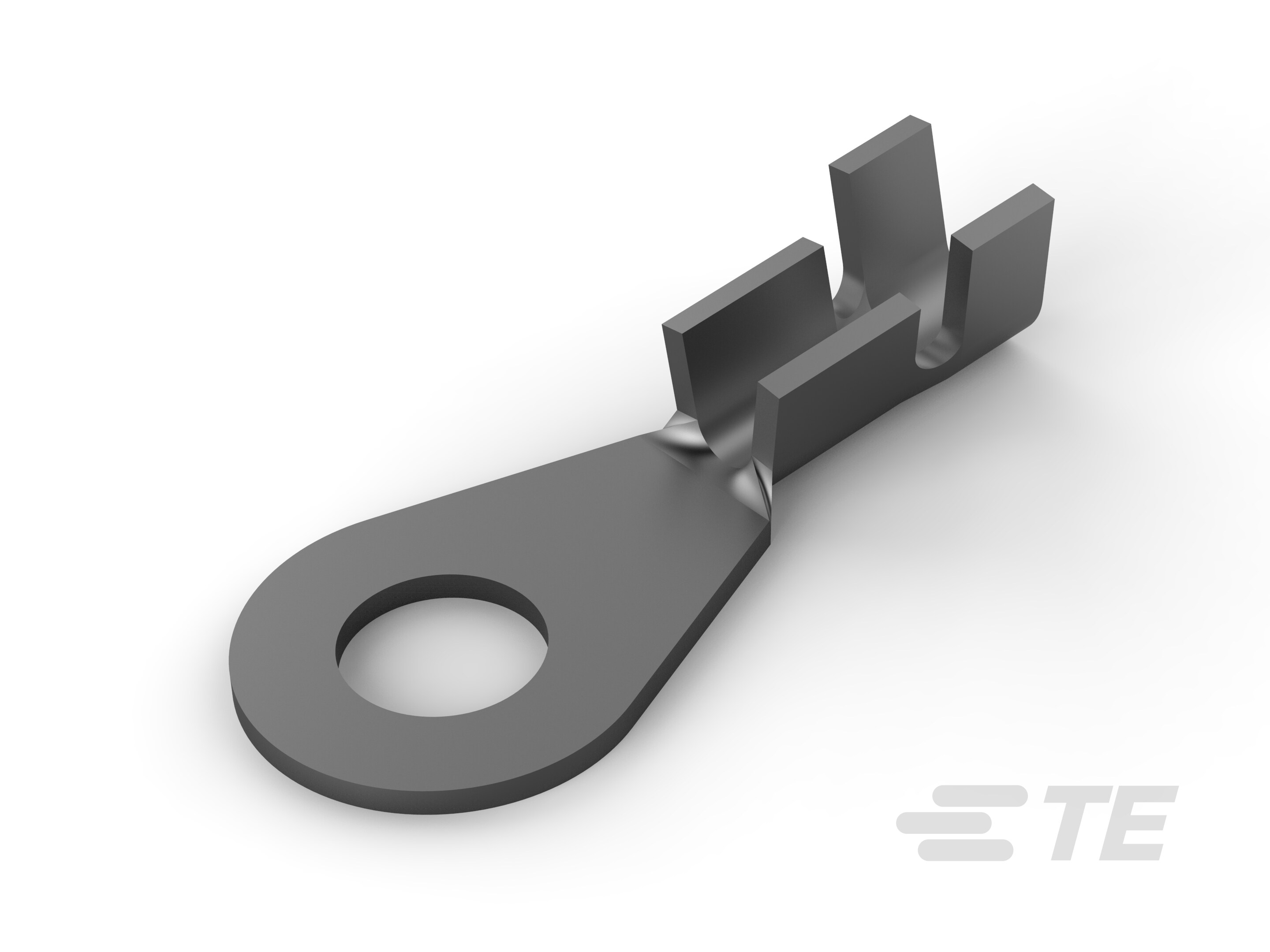

 TE Connectivity Raychem Cable Protection | Crimp | Brass | Non-Insulated | Circular | 19.91 mm | 0.784 in | 8 Stud | 8.69 mm | 0.342 in | Free Hanging (In-Line) | 0.08 in | 3.05 mm | 0.12 in | 2.03 mm | 0.64 mm | 0.025 in | 16 AWG | 20 AWG |
