859-004 Series
Manufacturer: NorComp Inc.
Beta
⌘K

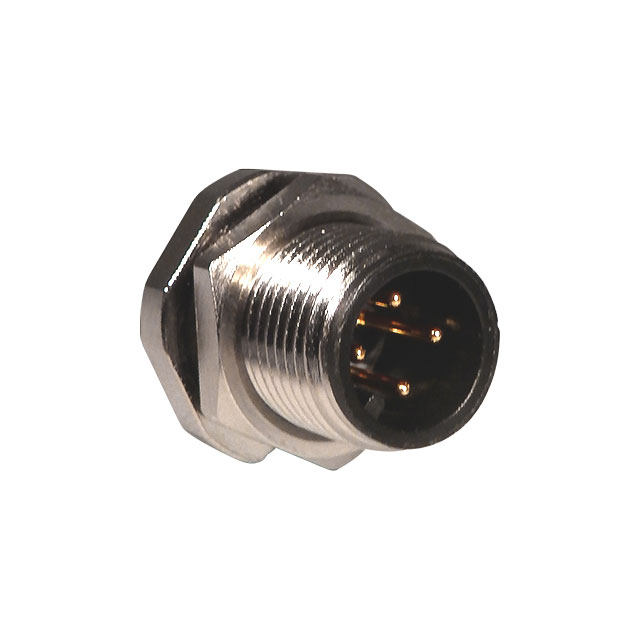

SENSOR CONNECTOR, UNSHIELDED, VULCON SERIES, M12, MALE, 4 POSITIONS, SOLDER PIN
| Part | Shell Material | Shell Size - Insert | Shielding | Contact Finish - Mating | Orientation | Insert Material | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Connector Type | Fastening Type | Color | Primary Material | Shell Finish | Applications | Voltage Rating | Material Flammability Rating | Mounting Feature | Mounting Type | Contact Material | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | Brass | M12-4 | Shielded | Gold | A | Polybutylene Terephthalate (PBT) | 4 A | 0.25 µm | 10 µin | IP67 - Dust Tight Waterproof | 85 °C | -40 C | 4 | Receptacle Male Pins | Threaded | Silver | Metal | Nickel | Industrial Medical | 250 V | UL94 V-0 | Bulkhead - Front Side Nut | Panel Mount | Brass | |

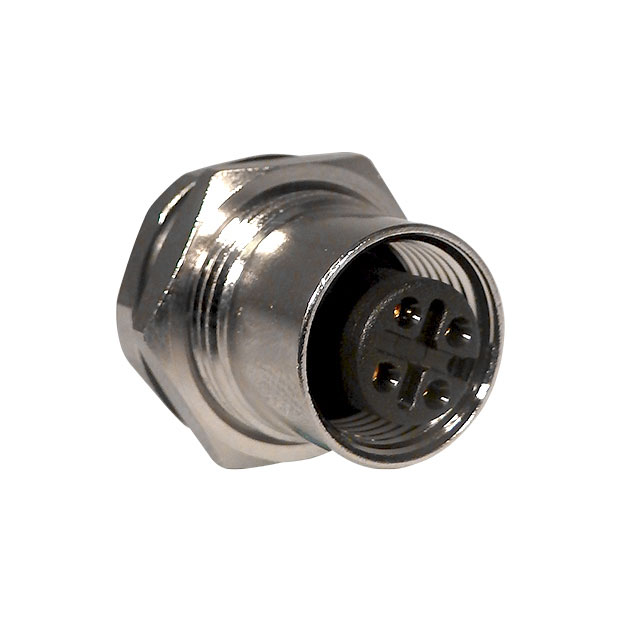

 NorComp Inc. | Brass | M12-4 | Shielded | Gold | A | Polybutylene Terephthalate (PBT) | 4 A | IP67 - Dust Tight Waterproof | 85 °C | -40 C | 4 | Plug Female Sockets | Threaded | Silver | Metal | Nickel | Industrial Medical | 250 V | UL94 V-0 | Bulkhead - Front Side Nut | Panel Mount | Brass | Flash |
