337-028 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 28 CONTACTS, PANEL MOUNT, STRAIGHT

...

Part	Material - Insulation	Termination Rows [custom]	Read Out	Flange Feature	Gender	Termination	Card Thickness [Max]	Card Thickness [Min]	Contact Material	Number of Positions	Card Type	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Type	Number of Positions/Bay/Row	Mounting Type	Number of Rows [custom]	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish	Termination Rows	Number of Rows	Flange Feature [diameter]	Flange Feature [diameter]

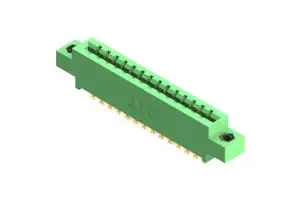

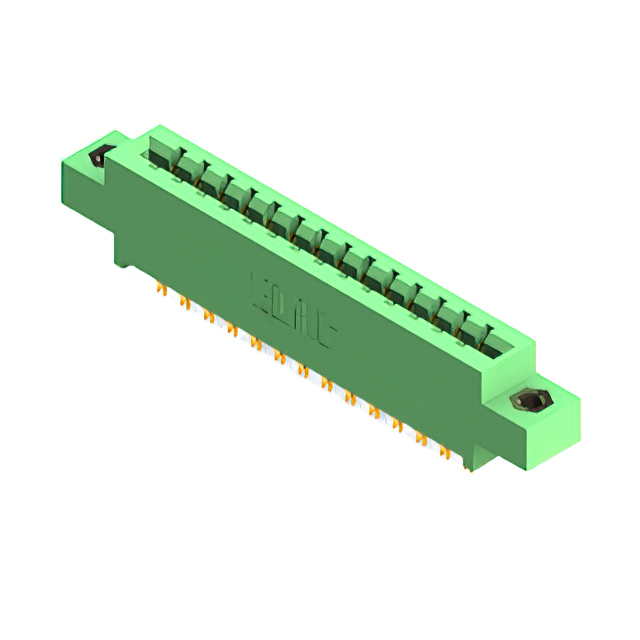

EDAC Inc. 337-028-555-807	Polyester Thermoplastic	2	Dual	M3 Threaded Insert Top Mount Opening	Female	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	28	Non Specified - Dual Edge	0.25 Ám	10 Áin	Card Extender	Cantilever	14	Board Edge Straddle Mount	2	3.96 mm	0.156 in	-40 C	105 ░C	Green	Gold

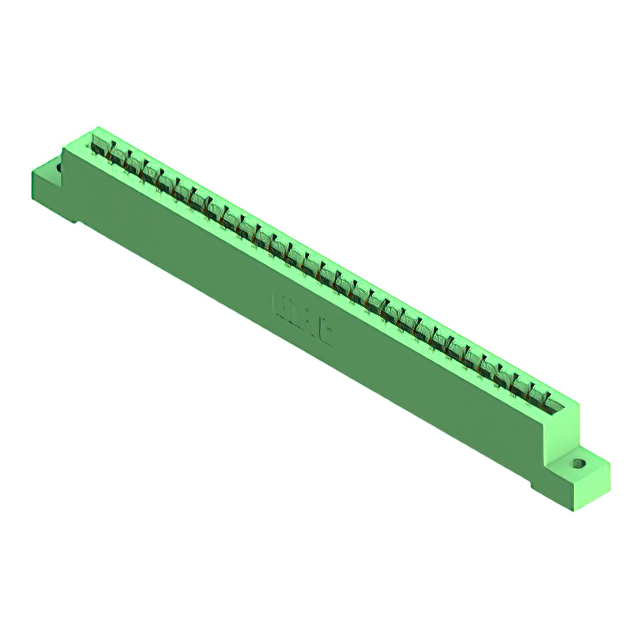

EDAC Inc. 337-028-520-102	Polyester Thermoplastic		Single	Flush Mount Top Opening Unthreaded	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	28	Non Specified - Single Edge	0.25 Ám	10 Áin		Cantilever	28	Through Hole		3.96 mm	0.156 in	-40 C	105 ░C	Green	Gold	1	1	3.25 mm	0.128 "

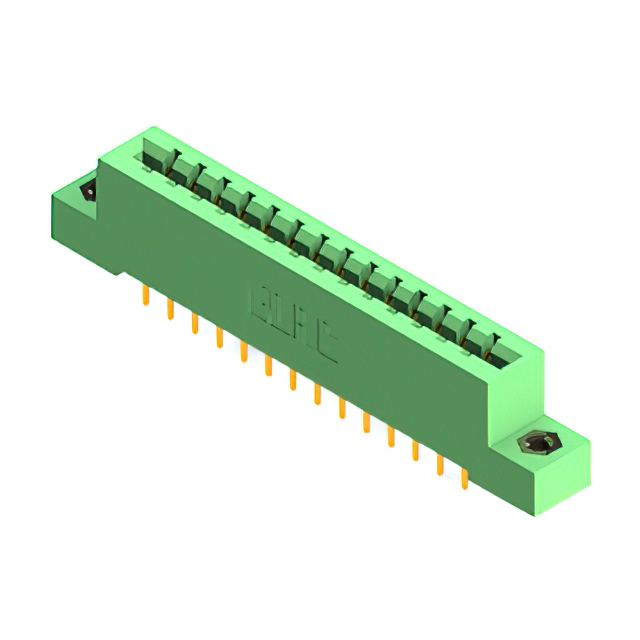

EDAC Inc. 337-028-521-208	Polyester Thermoplastic	2	Dual	4-40 Flush Mount Threaded Insert Top Opening	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	28	Non Specified - Dual Edge	0.25 Ám	10 Áin		Cantilever	14	Through Hole	2	3.96 mm	0.156 in	-40 C	105 ░C	Green	Gold

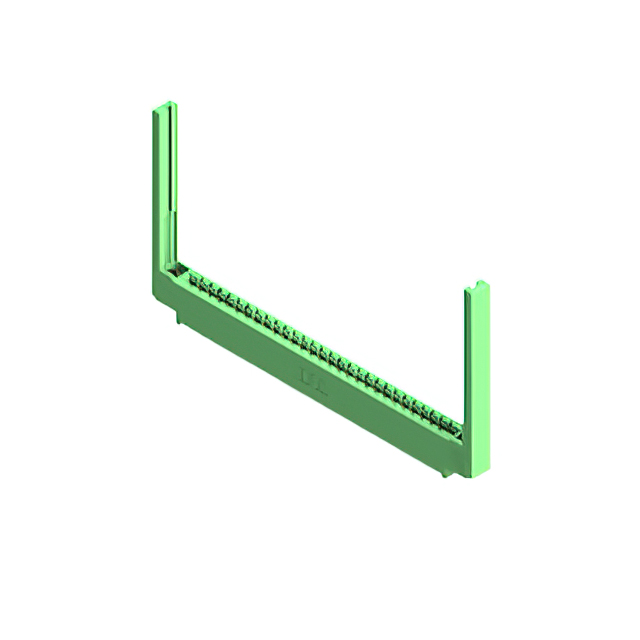

EDAC Inc. 337-028-541-668	Polyester Thermoplastic		Single	4-40 Threaded Insert Top Mount Opening	Female	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	28	Non Specified - Single Edge	0.25 Ám	10 Áin		Cantilever	28	Through Hole		3.96 mm	0.156 in	-40 C	105 ░C	Green	Gold	1	1

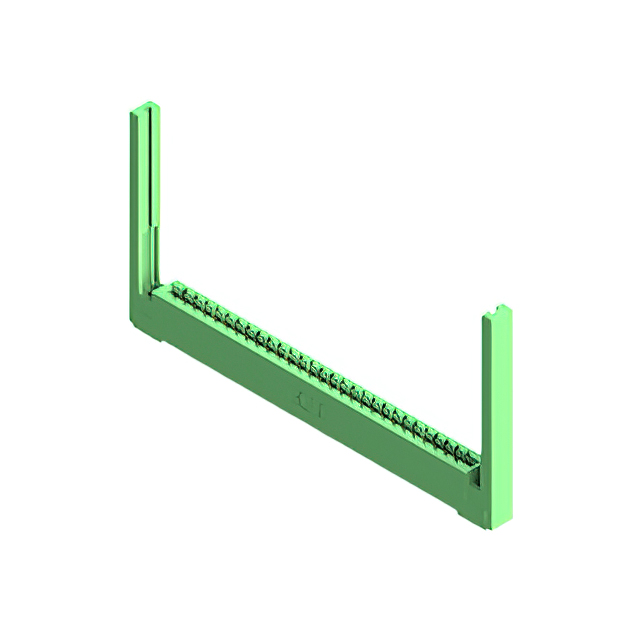

EDAC Inc. 337-028-521-168	Polyester Thermoplastic		Single	4-40 Flush Mount Threaded Insert Top Opening	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	28	Non Specified - Single Edge	0.25 Ám	10 Áin		Cantilever	28	Through Hole		3.96 mm	0.156 in	-40 C	105 ░C	Green	Gold	1	1

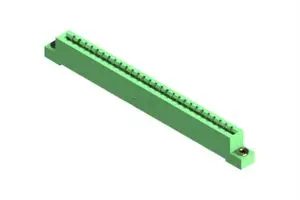

EDAC Inc. 337-028-500-103	Polyester Thermoplastic		Single	Floating Bobbin Flush Mount	Female	Solder Eyelet(s)	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	28	Non Specified - Single Edge	0.25 Ám	10 Áin		Cantilever	28	Through Hole		3.96 mm	0.156 in	-40 C	105 ░C	Green	Gold	1	1	2.95 mm	0.116 "

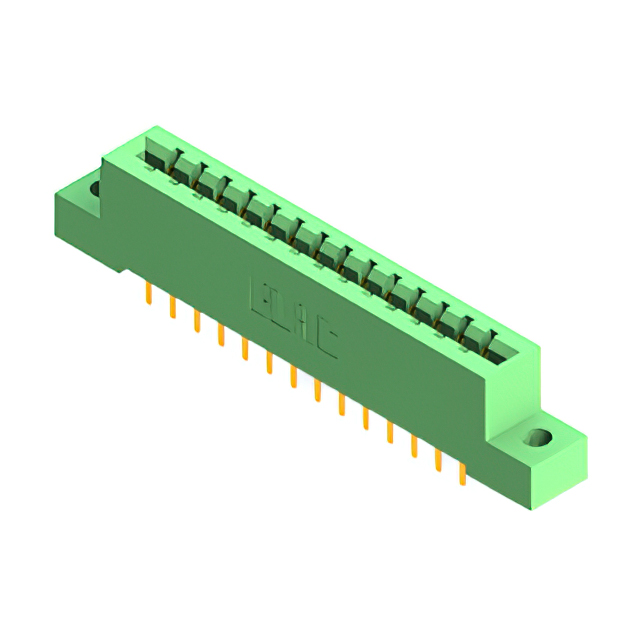

EDAC Inc. 337-028-520-204	Polyester Thermoplastic	2	Dual	Flush Mount Top Opening Unthreaded	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	28	Non Specified - Dual Edge	0.25 Ám	10 Áin		Cantilever	14	Through Hole	2	3.96 mm	0.156 in	-40 C	105 ░C	Green	Gold			3.96 mm	0.156 "
EDAC Inc. 337-028-544-108	Polyester Thermoplastic		Single	4-40 Flush Mount Threaded Insert Top Opening	Female	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	28	Non Specified - Single Edge	0.25 Ám	10 Áin		Cantilever	28	Through Hole		3.96 mm	0.156 in	-40 C	105 ░C	Green	Gold	1	1
EDAC Inc. 337-028-521-858	Polyester Thermoplastic	2	Dual	4-40 Threaded Insert Top Mount Opening	Female	Solder	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	28	Non Specified - Dual Edge	0.25 Ám	10 Áin	Card Guides	Cantilever	14	Through Hole	2	3.96 mm	0.156 in	-40 C	105 ░C	Green	Gold
EDAC Inc. 337-028-541-602	Polyester Thermoplastic		Single		Female	Wire Wrap	0.07 in 1.78 mm	0.054 in 1.37 mm	Copper Alloy	28	Non Specified - Single Edge	0.25 Ám	10 Áin		Cantilever	28	Through Hole		3.96 mm	0.156 in	-40 C	105 ░C	Green	Gold	1	1	3.25 mm	0.128 "
