FK-MPT Series
Manufacturer: Phoenix Contact
Beta
⌘K
FIXED TERMINAL BLOCKS FK-MPT 0.5/11-3.5-H
| Part | Housing Material | Mating Orientation | Mounting Type | Voltage | Positions Per Level | Color | Pitch | Pitch | Wire Gauge [Max] | Wire Gauge [Min] | Number of Levels | Current | Wire Termination | Contact Material - Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Polybutylene Terephthalate (PBT) | Horizontal with Board | Through Hole | 300 VDC | 11 | Green | 3.5 mm | 0.138 " | 28 AWG | 19.5 AWG | 1 | 4 A | Screwless - Spring Cage Tension Clamp | |
Phoenix Contact | Polybutylene Terephthalate (PBT) | Horizontal with Board | Through Hole | 300 VDC | 6 | Green | 3.5 mm | 0.138 " | 28 AWG | 19.5 AWG | 1 | 4 A | Screwless - Spring Cage Tension Clamp | |

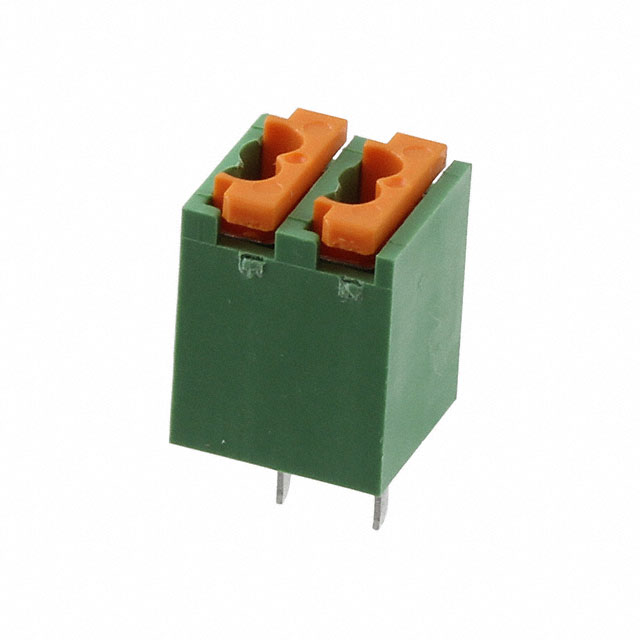

 Phoenix Contact | Polyamide (PA) Nylon | Vertical with Board | Through Hole | 300 VDC | 2 | Green | 3.5 mm | 0.138 " | 28 AWG | 19.5 AWG | 1 | 4 A | Screwless - Spring Cage Tension Clamp | |
 Phoenix Contact | Polybutylene Terephthalate (PBT) | Vertical with Board | Through Hole | 300 VDC | 13 | Green | 3.5 mm | 0.138 " | 28 AWG | 19.5 AWG | 1 | 4 A | Screwless - Spring Cage Tension Clamp | |

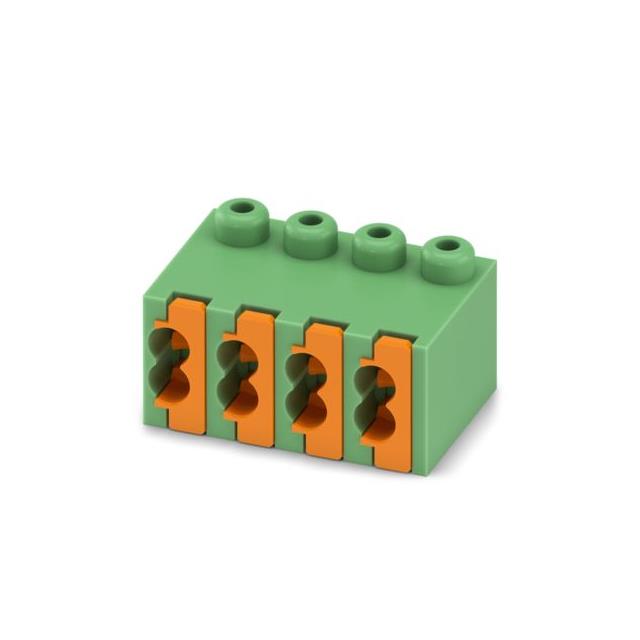

 Phoenix Contact | Polybutylene Terephthalate (PBT) | Horizontal with Board | Through Hole | 300 VDC | 4 | Green | 3.5 mm | 0.138 " | 28 AWG | 19.5 AWG | 1 | 4 A | Screwless - Spring Cage Tension Clamp | Tin Plated |
