A3UL-TBU Series

Manufacturer: Omron Automation and Safety

Catalog

SWITCH PUSHBUTTON DPDT 0.1A 30V

Part	Electrical Life	Mechanical Life	Mounting Type	Voltage Rating - DC	Illumination Type, Color	Illumination Voltage (Nominal)	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Actuator Type	Termination Style	Actuator Marking	Ingress Protection	Switch Function	Type	Color - Actuator/Cap	Current Rating (Amps)
Omron Automation and Safety A3UL-TBU-3A2C-M-S	200000 Cycles	1000000 Cycles	Panel Mount Front	30 V	LED Umber	24 V	25.2 mm	55 °C	-20 ░C	DPDT	Button Flush Round	Connector	No Marking	IP40	On-Mom	Illuminated Standard	Clear	100 mA

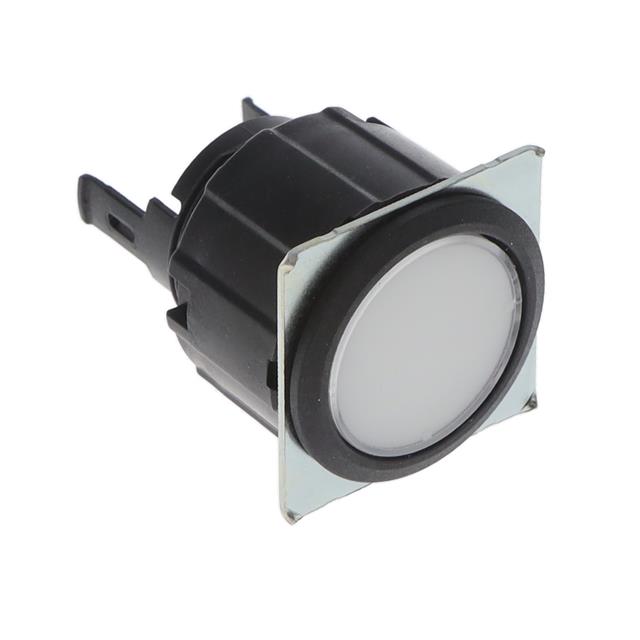

Omron Automation and Safety A3UL-TBU-1A2C-M	200000 Cycles	1000000 Cycles	Panel Mount Front	30 V	LED Umber	5 VDC	25.2 mm	55 °C	-20 ░C	DPDT	Button Flush Round	Connector	No Marking	IP40	On-Mom	Illuminated Standard	Clear	100 mA
Omron Automation and Safety A3UL-TBU-3A1C-M-S	200000 Cycles	1000000 Cycles	Panel Mount Front	30 V	LED Umber	24 V	25.2 mm	55 °C	-20 ░C	SPDT	Button Flush Round	Connector	No Marking	IP40	On-Mom	Illuminated Standard	Clear	100 mA
Omron Automation and Safety A3UL-TBU-1A1C-M	200000 Cycles	1000000 Cycles	Panel Mount Front	30 V	LED Umber	5 VDC	25.2 mm	55 °C	-20 ░C	SPDT	Button Flush Round	Connector	No Marking	IP40	On-Mom	Illuminated Standard	Clear	100 mA
Omron Automation and Safety A3UL-TBU-3A1C-5M-S	200000 Cycles	1000000 Cycles	Panel Mount Front	30 V	LED Umber	24 V	25.2 mm	55 °C	-20 ░C	SPDT	Button Flush Round	Connector	No Marking	IP65	On-Mom	Illuminated Standard	Clear	100 mA
Omron Automation and Safety A3UL-TBU-3A2C-M	200000 Cycles	1000000 Cycles	Panel Mount Front	30 V	LED Umber	24 V	25.2 mm	55 °C	-20 ░C	DPDT	Button Flush Round	Connector	No Marking	IP40	On-Mom	Illuminated Standard	Clear	100 mA

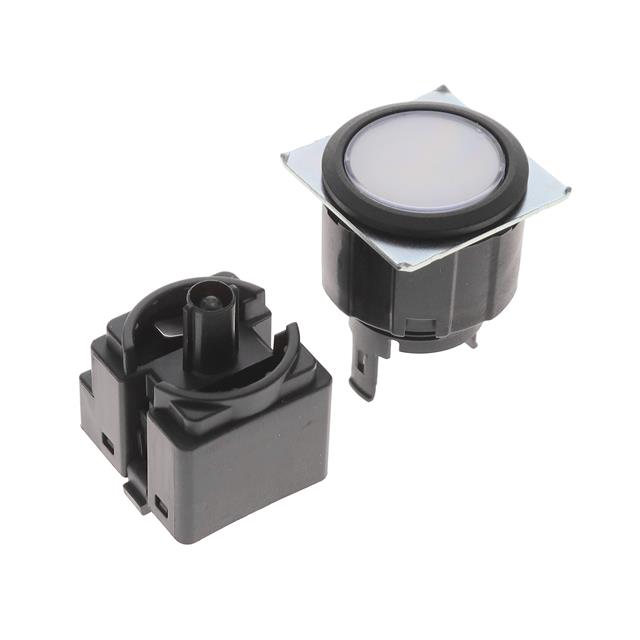

Omron Automation and Safety A3UL-TBU-1A1C-5M-S	200000 Cycles	1000000 Cycles	Panel Mount Front	30 V	LED Umber	5 VDC	25.2 mm	55 °C	-20 ░C	SPDT	Button Flush Round	Connector	No Marking	IP65	On-Mom	Illuminated Standard	Clear	100 mA
Omron Automation and Safety A3UL-TBU-1A2C-5M-S	200000 Cycles	1000000 Cycles	Panel Mount Front	30 V	LED Umber	5 VDC	25.2 mm	55 °C	-20 ░C	DPDT	Button Flush Round	Connector	No Marking	IP65	On-Mom	Illuminated Standard	Clear	100 mA

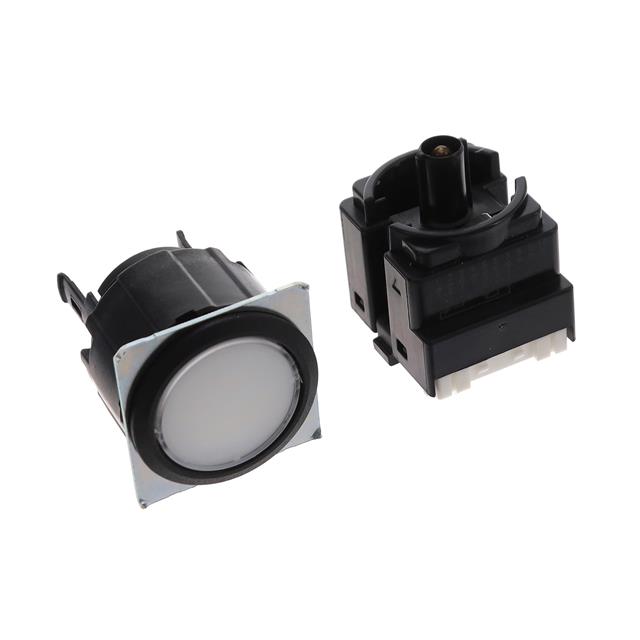

Omron Automation and Safety A3UL-TBU-3A1C-M	200000 Cycles	1000000 Cycles	Panel Mount Front	30 V	LED Umber	24 V	25.2 mm	55 °C	-20 ░C	SPDT	Button Flush Round	Connector	No Marking	IP40	On-Mom	Illuminated Standard	Clear	100 mA

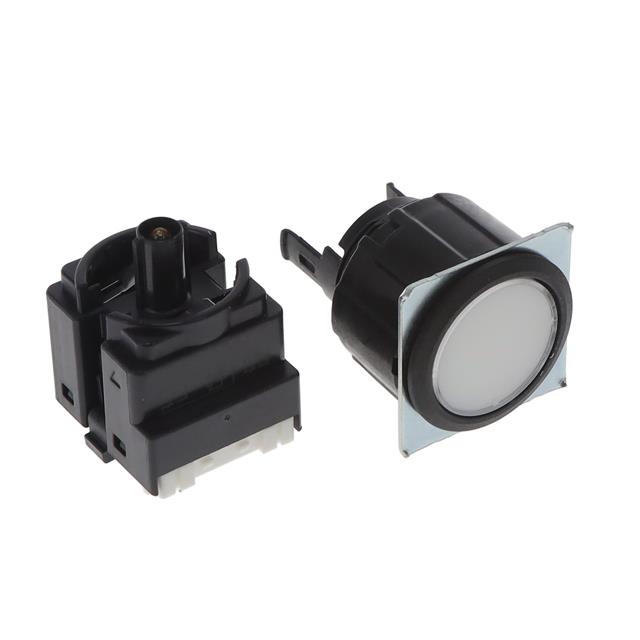

Omron Automation and Safety A3UL-TBU-2A2C-M-S	200000 Cycles	1000000 Cycles	Panel Mount Front	30 V	LED Umber	12 VDC	25.2 mm	55 °C	-20 ░C	DPDT	Button Flush Round	Connector	No Marking	IP40	On-Mom	Illuminated Standard	Clear	100 mA
