EZC35 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

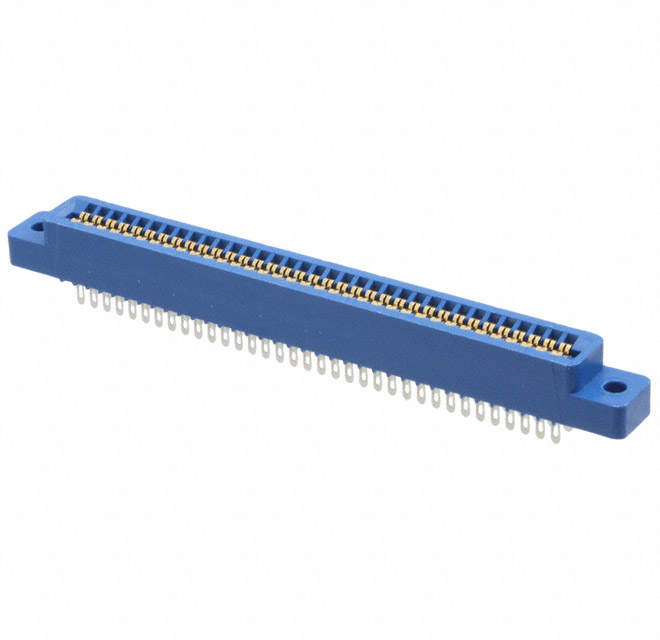

CONN EDGE DUAL FMALE 70POS 0.100
| Part | Number of Rows | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Material - Insulation | Contact Material | Gender | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Read Out | Number of Positions/Bay/Row [custom] | Color | Card Type | Number of Positions | Card Thickness | Card Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 2 | Full Bellows | 10 Áin | 0.25 Ám | Gold | 2.54 mm | 0.1 in | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | Polybutylene Terephthalate (PBT) | Phosphor Bronze | Female | 125 °C | -65 ░C | Solder Eyelet(s) | Dual | 35 | Blue | Non Specified - Dual Edge | 70 | 0.062 in | 1.57 mm |
