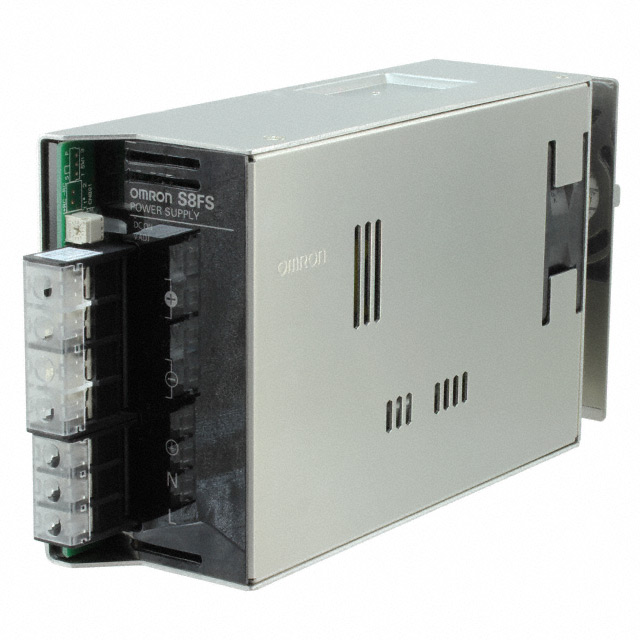

S8FS-G600 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
AC/DC CONVERTER 15V 600W
| Part | Efficiency | Approval Agency | Mounting Type | Current - Output 1 | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Isolation | Voltage - Input [Min] | Voltage - Input [Max] | Applications | Type | Number of Outputs | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Features | Voltage - Output 1 | Minimum Load Required | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Input Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div | 88 % | CE cURus TUV UL | Chassis Mount | 40 A | -20 °C | 70 °C | 3000 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Industrial ITE (Commercial) | Enclosed | 1 | 600 W | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | Adjustable Output Universal Input | 15 V | ||||
Omron Electronics Inc-EMC Div | 88 % | CE CSA cUR UL | Chassis Mount | 50 A | -20 °C | 70 °C | 3000 V | Industrial ITE (Commercial) | Enclosed | 1 | 600 W | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | Adjustable Output DC Input Capable Universal Input | 12 V | ||||||
 Omron Electronics Inc-EMC Div | 90 % | CE cURus TUV UL | -20 °C | 70 °C | 3000 V | ITE (Commercial) | 1 | 600 W | 102 mm | 7.48 " | 4.02 " | 1.66 " | 170 mm | 42.2 mm | Adjustable Output PFC Universal Input | 24 V | 85 VAC | 264 VAC | AC | ||||||
Omron Electronics Inc-EMC Div | 90 % | CE cURus TUV UL | Chassis Mount | 27 A | -20 °C | 70 °C | 3000 V | 85 VAC 120 VDC | 264 VAC 370 VDC | Industrial ITE (Commercial) | Enclosed | 1 | 648 W | 61 mm | 7.48 " | 2.4 in | 4.72 in | 190 mm | 120 mm | Adjustable Output Universal Input | 24 V |
