1509 Series

Catalog

CONN BARRIER STRIP 9CIRC 0.375"

Part	Operating Temperature	Material Flammability Rating	Terminal Screw Material	Mounting Type	Material - Insulation	Current Rating (Amps)	Barrier Type	Number of Wire Entries	Number of Rows [custom]	Pitch	Pitch	Bottom Termination	Top Termination	Features	Number of Circuits [custom]	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Block Type	Terminal Screw Finish

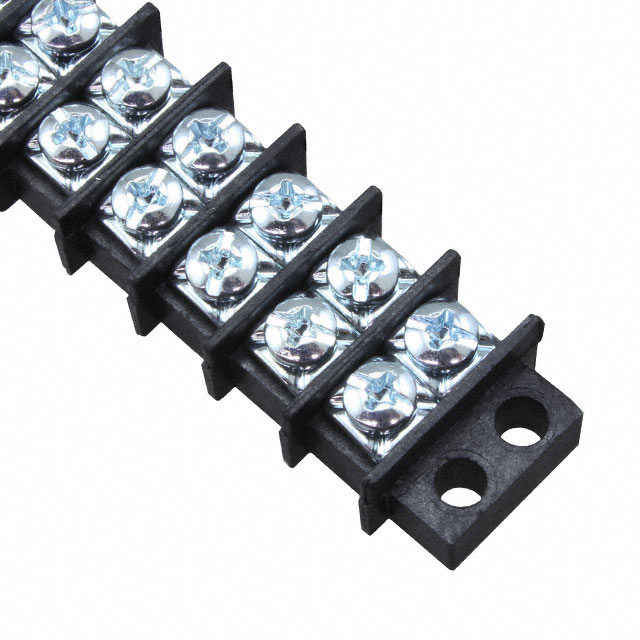

Curtis Industries 1509W	110 °C	UL94 V-0	Steel	Chassis Panel	Polyphenylene Oxide (PPO)	20 A	2 Wall (Dual)	18	2	9.53 mm	0.375 in	Closed	Screws with Captive Plate	Flange	9	22 AWG	10 AWG	Barrier Block
Curtis Industries 1509-3/4ST	110 °C	UL94 V-0		Chassis Panel	Polyphenylene Oxide (PPO)	20 A	2 Wall (Dual)	18	2	9.53 mm	0.375 in	Closed	Screws with Solder Lugs Single	Flange	9	22 AWG	10 AWG	Barrier Block	Tin

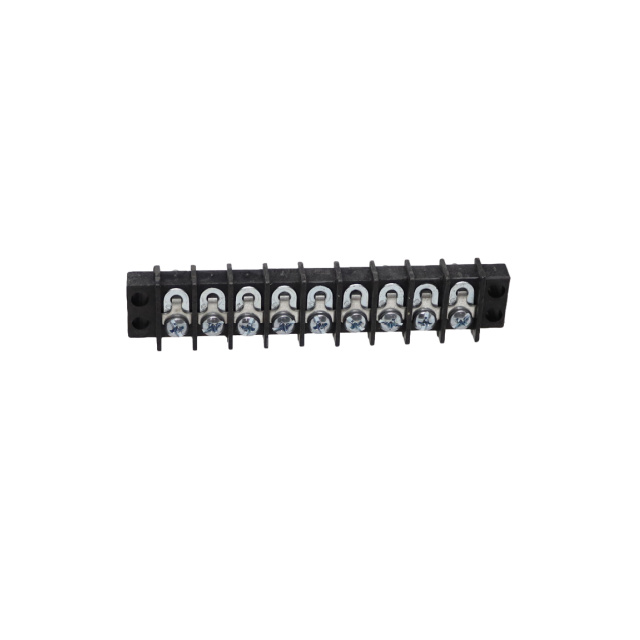

Curtis Industries 1509-Y	110 °C	UL94 V-0	Steel	Chassis Panel Through Hole	Polyphenylene Oxide (PPO)	20 A	2 Wall (Dual)	18	2	9.53 mm	0.375 in	PC Pin	Screws	Flange	9	22 AWG	10 AWG	Barrier Block
Curtis Industries 1509-ST	110 °C	UL94 V-0		Chassis Panel	Polyphenylene Oxide (PPO)	20 A	2 Wall (Dual)	18	2	9.53 mm	0.375 in	Closed	Dual Screws with Solder Lugs	Flange	9	22 AWG	10 AWG	Barrier Block	Tin
