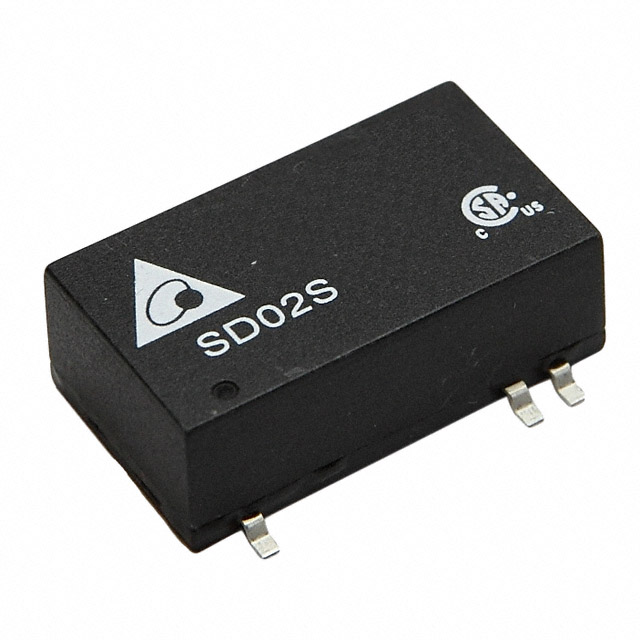

SD02S Series

Catalog

ISOLATED DC/DC CONVERTERS - SMD DC/DC CONVERTER, 5VOUT, 2W

Part	Voltage - Isolation	Package / Case	Voltage - Input (Max) [Max]	Type	Efficiency	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Output 1	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Mounting Type	Features	Applications
Delta Electronics SD02S2405A	1.5 kV	16-SMD Module	36 V	Isolated Module	77 %	2 W	0.71 in 18.1 mm	0.94 " 23.9 mm	0.31 in 8 mm	85 °C	-40 C	1	5 V	18 V	400 mA	Surface Mount	SCP UVLO	Medical
Delta Electronics SD02S2403A	1.5 kV	16-SMD Module	36 V	Isolated Module	72 %	2 W	0.71 in 18.1 mm	0.94 " 23.9 mm	0.31 in 8 mm	85 °C	-40 C	1	3.3 V	18 V	500 mA	Surface Mount	SCP UVLO	Medical
Delta Electronics SD02S4812A	1.5 kV	16-SMD Module	75 V	Isolated Module	79 %	2 W	0.71 in 18.1 mm	0.94 " 23.9 mm	0.31 in 8 mm	85 °C	-40 C	1	12 V	36 V	167 mA	Surface Mount	SCP UVLO	Medical
Delta Electronics SD02S4815A	1.5 kV	16-SMD Module	75 V	Isolated Module	79 %	2 W	0.71 in 18.1 mm	0.94 " 23.9 mm	0.31 in 8 mm	85 °C	-40 C	1	15 V	36 V	134 mA	Surface Mount	SCP UVLO	Medical
Delta Electronics SD02S0515A	1.5 kV	16-SMD Module	9 V	Isolated Module	73 %	2 W	0.71 in 18.1 mm	0.94 " 23.9 mm	0.31 in 8 mm	85 °C	-40 C	1	15 V	4.5 V	134 mA	Surface Mount	SCP UVLO	Medical
Delta Electronics SD02S2412A	1.5 kV	16-SMD Module	36 V	Isolated Module	80 %	2 W	0.71 in 18.1 mm	0.94 " 23.9 mm	0.31 in 8 mm	85 °C	-40 C	1	12 V	18 V	167 mA	Surface Mount	SCP UVLO	Medical
Delta Electronics SD02S1205A	1.5 kV	16-SMD Module	18 V	Isolated Module	77 %	2 W	0.71 in 18.1 mm	0.94 " 23.9 mm	0.31 in 8 mm	85 °C	-40 C	1	5 V	9 V	400 mA	Surface Mount	SCP UVLO	Medical
