RJE71188 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K

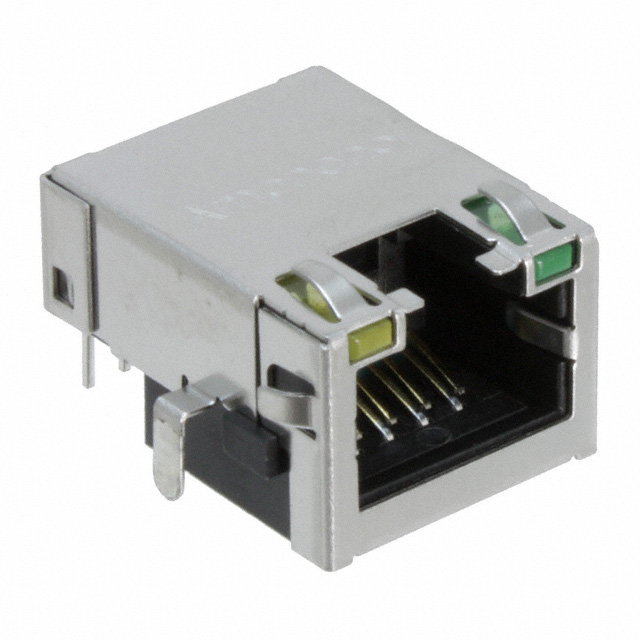

CONN MOD JACK 8P8C R/A SHIELDED
| Part | Contact Finish Thickness | Contact Finish Thickness | Housing Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Termination | Ratings | Tab Direction | Shielding | Number of Positions/Contacts | Number of Rows | LED Color | Contact Finish | Number of Ports | Orientation | Mounting Type | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (Commercial Products) | 0.152 Ám | 6 Áin | Thermoplastic | 85 °C | -40 C | Phosphor Bronze | Solder | Cat6 | Up | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | 1 | Does Not Contain LED | Gold | 1 | 90 ° | Board Edge Panel Mount Through Hole | Jack |
Amphenol ICC (Commercial Products) | 1.27 µm | 50 µin | Thermoplastic | 85 °C | -40 C | Phosphor Bronze | Solder | Cat6 | Up | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | 1 | Yellow - Green | Gold | 1 | 90 ° | Board Edge Panel Mount Through Hole | Jack |
Amphenol ICC (Commercial Products) | 1.27 µm | 50 µin | Thermoplastic | 85 °C | -40 C | Phosphor Bronze | Solder | Cat6 | Up | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | 1 | Green Green - Red | Gold | 1 | 90 ° | Board Edge Panel Mount Through Hole | Jack |
Amphenol ICC (Commercial Products) | 1.27 µm | 50 µin | Thermoplastic | 85 °C | -40 C | Phosphor Bronze | Solder | Cat6 | Up | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | 1 | Green - Yellow | Gold | 1 | 90 ° | Board Edge Panel Mount Through Hole | Jack |
 Amphenol ICC (Commercial Products) | 1.27 µm | 50 µin | Thermoplastic | 85 °C | -40 C | Phosphor Bronze | Solder | Cat6 | Up | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | 1 | Does Not Contain LED | Gold | 1 | 90 ° | Board Edge Panel Mount Through Hole | Jack |
Amphenol ICC (Commercial Products) | 1.27 µm | 50 µin | Thermoplastic | 85 °C | -40 C | Phosphor Bronze | Solder | Cat6 | Up | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | 1 | Yellow - Yellow | Gold | 1 | 90 ° | Board Edge Panel Mount Through Hole | Jack |
 Amphenol ICC (Commercial Products) | 1.27 µm | 50 µin | Thermoplastic | 85 °C | -40 C | Phosphor Bronze | Solder | Cat6 | Up | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | 1 | Yellow - Green | Gold | 1 | 90 ° | Board Edge Panel Mount Through Hole | Jack |
Amphenol ICC (Commercial Products) | 1.27 µm | 50 µin | Thermoplastic | 85 °C | -40 C | Phosphor Bronze | Solder | Cat6 | Up | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | 1 | Green - Green | Gold | 1 | 90 ° | Board Edge Panel Mount Through Hole | Jack |
Amphenol ICC (Commercial Products) | 0.152 Ám | 6 Áin | Thermoplastic | 85 °C | -40 C | Phosphor Bronze | Solder | Cat6 | Up | EMI Finger Shielded | 8p8c (RJ45 Ethernet) | 1 | Green - Green | Gold | 1 | 90 ° | Board Edge Panel Mount Through Hole | Jack |
