KX15-50K Series

Catalog

CONN PLUG 50POS R/A SMD GOLD

Part	Number of Positions	Pitch	Pitch	Number of Rows [custom]	Mounting Type	Height Above Board [z]	Height Above Board [z]	Contact Finish	Features	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights
JAE Electronics KX15-50KLDL-E1000E	50	0.8 mm	0.031 in	2	Right Angle Surface Mount	5.74 mm	0.226 "	Gold	Board Guide Solder Retention	0.1 Ám	4 Áin
JAE Electronics KX15-50K3D-E1000E	50	0.8 mm	0.031 in	2	Surface Mount	4.75 mm	0.187 in	Gold	Board Guide Solder Retention	0.1 Ám	4 Áin	5 mm 8 mm 11 mm 14 mm 17 mm

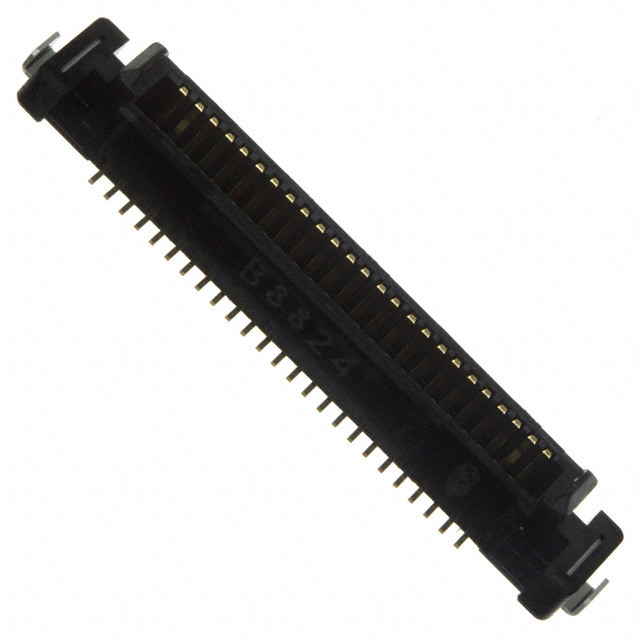

JAE Electronics KX15-50K2DE	50	0.8 mm	0.031 in	2	Surface Mount	3.75 mm	0.148 in	Gold	Board Guide Solder Retention	0.1 Ám	4 Áin	4 mm 7 mm 10 mm 13 mm 16 mm

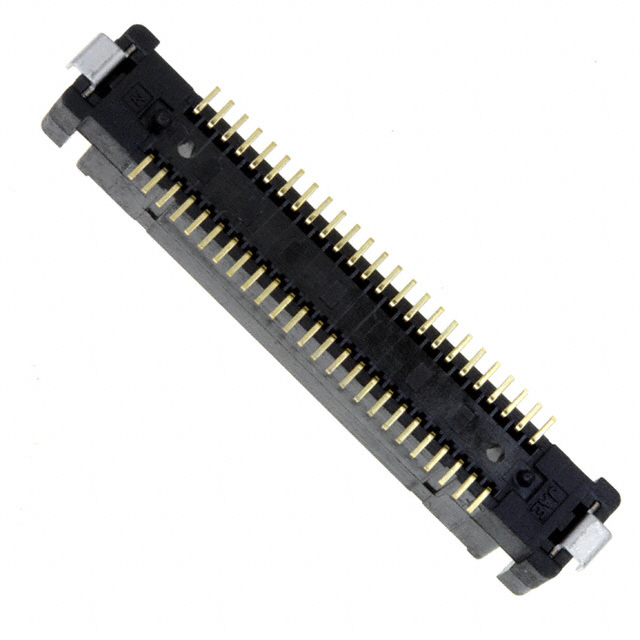

JAE Electronics KX15-50K4DE	50	0.8 mm	0.031 in	2	Surface Mount	5.74 mm	0.226 "	Gold	Board Guide Solder Retention	0.1 Ám	4 Áin	6 mm 9 mm 12 mm 15 mm 18 mm

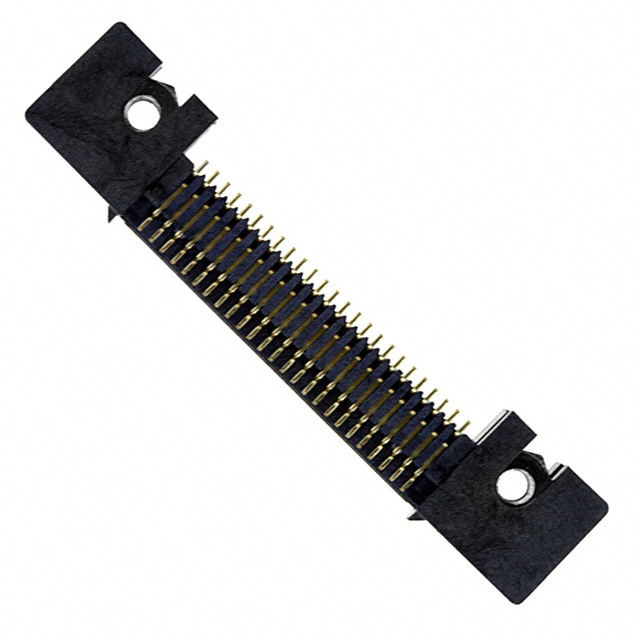

JAE Electronics KX15-50KLNL	50	0.8 mm	0.031 in	2	Right Angle Surface Mount	5.74 mm	0.226 "	Gold	Board Guide	0.1 Ám	4 Áin

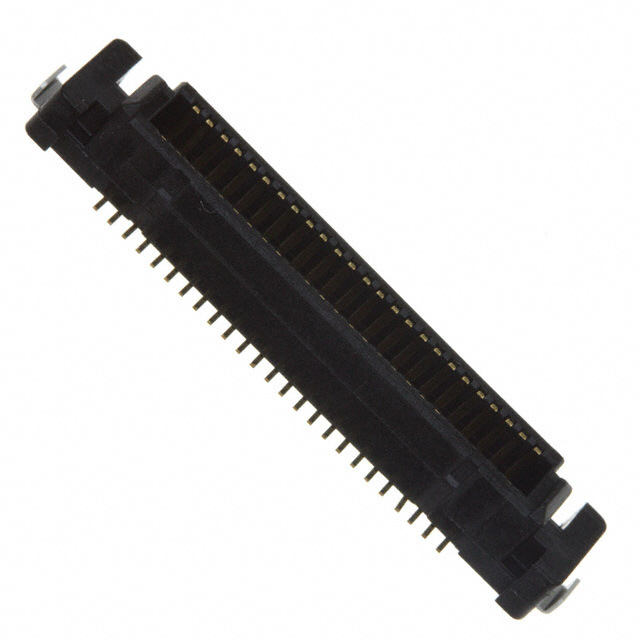

JAE Electronics KX15-50K3DE	50	0.8 mm	0.031 in	2	Surface Mount	4.75 mm	0.187 in	Gold	Board Guide Solder Retention	0.1 Ám	4 Áin	5 mm 8 mm 11 mm 14 mm 17 mm
JAE Electronics KX15-50K8DE	50	0.8 mm	0.031 in	2	Surface Mount	9.75 mm	0.384 in	Gold	Board Guide Solder Retention	0.1 Ám	4 Áin
