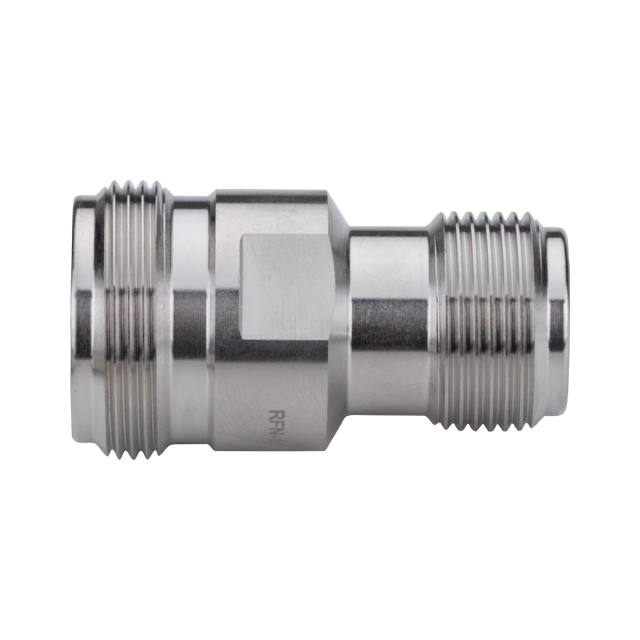

RFN-1047 Series
Manufacturer: RF Industries
Beta
⌘K
N FEMALE-4.1/9.5 FEMALE
| Part | Body Material | Center Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Insertion Loss | Body Finish | Dielectric Material | Conversion Type | Mounting Type | Convert From (Adapter End) | Convert To (Adapter End) | Center Contact Plating | Center Gender | Adapter Type | Frequency - Max [Max] | Impedance | Adapter Series | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RF Industries | Brass | Phosphor Bronze | -55 C | 85 °C | 500 | 0.05 dB | White Bronze | Polytetrafluoroethylene (PTFE) | Between Series | Free Hanging (In-Line) | 4.1/9.5 Jack Female Socket | N Jack Female Socket | Silver | Female to Female | Jack to Jack | 7.5 GHz | 50 Ohms | N to 4.1/9.5 | Straight |
