696366 Series

Catalog

CONN QC RCPT 14-16AWG 0.250

Part	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation	Length - Overall [x]	Length - Overall [x]	Tab Thickness	Tab Thickness	Gender	Mounting Type	Contact Finish	Termination	Color	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Tab Width [x]	Tab Width [x]	Terminal Type

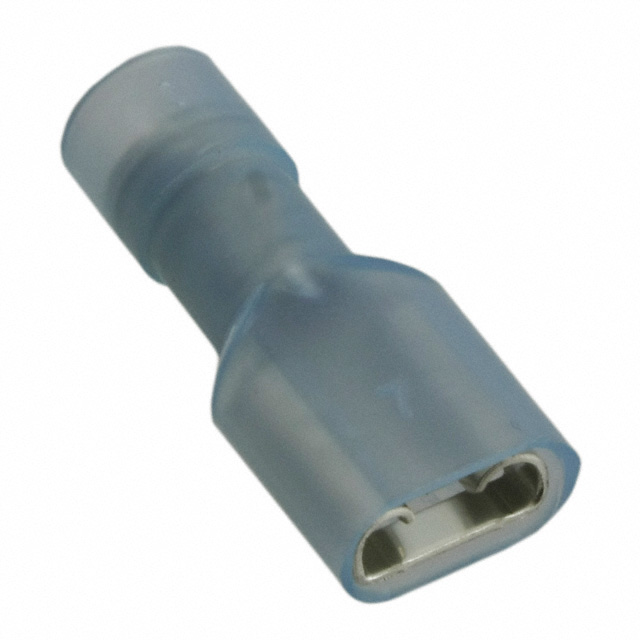

TE Connectivity AMP Connectors 696366-1	2.67 mm	4.06 mm	0.16 in	0.105 in	Fully Insulated	0.881 in	22.38 mm	0.81 mm	0.032 in	Female	Free Hanging (In-Line)	Tin	Crimp	Blue	Brass	14 AWG	16 AWG	6.35 mm	0.25 in	Standard

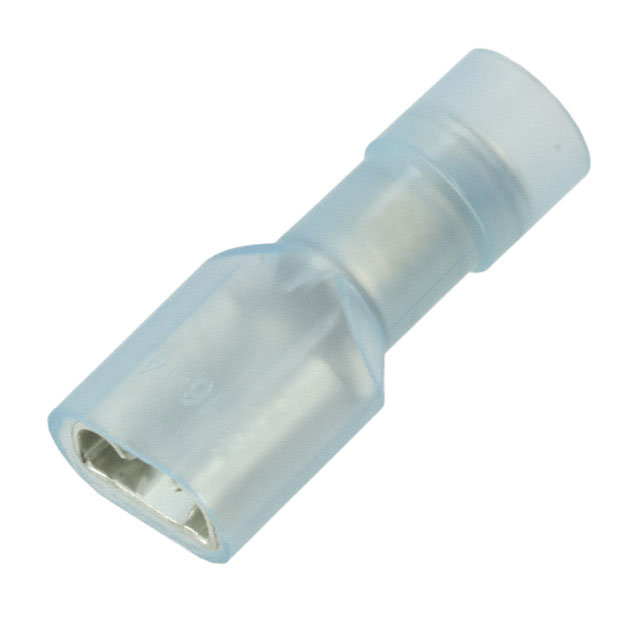

TE Connectivity AMP Connectors 8-696366-1	2.67 mm	4.06 mm	0.16 in	0.105 in	Fully Insulated	0.881 in	22.38 mm	0.81 mm	0.032 in	Female	Free Hanging (In-Line)	Tin	Crimp	Blue	Brass	14 AWG	16 AWG	6.35 mm	0.25 in	Standard
