9433 Series
Manufacturer: Belden Inc.
Beta
⌘K

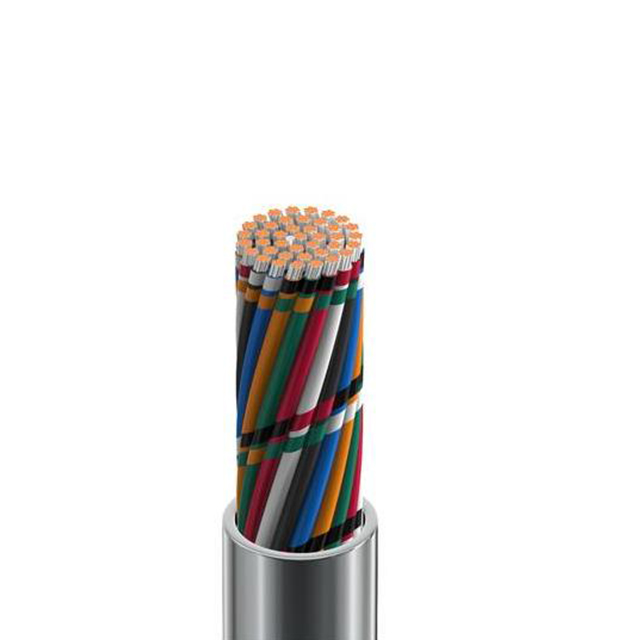

CABLE 40COND 22AWG CHROME
| Part | Cable Type | Jacket (Insulation) Material | Ratings | Conductor Material | Number of Conductors | Conductor Strand [custom] | Conductor Strand [custom] | Jacket Color | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Length [x] | Length [x] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Multi-Conductor | Poly-Vinyl Chloride (PVC) | UL Style 2576 | Copper Tinned | 40 | 30 AWG | 7 | Chrome | 22 AWG | 80 °C | -20 ░C | Audio Control Instrumentation | 1.016 mm | 0.04 in | 11.56 mm | 0.455 in | Poly-Vinyl Chloride (PVC) | ||||
 Belden Inc. | Multi-Conductor | Poly-Vinyl Chloride (PVC) | UL Style 2576 | Copper Tinned | 40 | 30 AWG | 7 | Chrome | 22 AWG | 80 °C | -20 ░C | Audio Control Instrumentation | 1.016 mm | 0.04 in | 11.56 mm | 0.455 in | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | ||
Belden Inc. | Multi-Conductor | Poly-Vinyl Chloride (PVC) | UL Style 2576 | Copper Tinned | 40 | 30 AWG | 7 | Chrome | 22 AWG | 80 °C | -20 ░C | Audio Control Instrumentation | 1.016 mm | 0.04 in | 11.56 mm | 0.455 in | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft |
