1877849 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

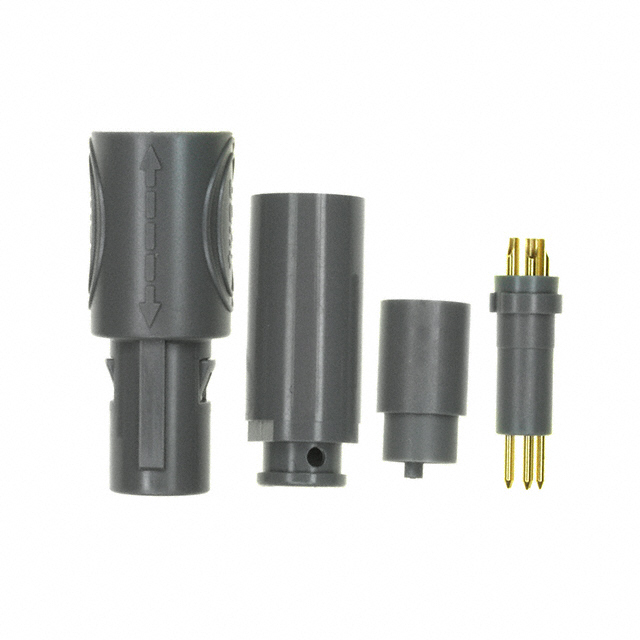

CONN PLUG MALE 5P GOLD SLDR CUP
| Part | Mounting Type | Orientation | Contact Material | Fastening Type | Applications | Current Rating (Amps) | Insert Material | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Color | Primary Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Contact Finish - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | 0 ° | Copper Alloy | Latch Lock | Medical | 7 A | Polyphenylene Sulfide (PPS) | 300 VAC | -50 °C | 170 °C | Gray | Plastic | 29.5 Áin | 0.75 Ám | Male Pins Plug | Gold |
