WR-80S-V Series

Catalog

CONN RCPT 80POS SMD GOLD

Part	Mated Stacking Heights	Contact Finish	Pitch	Pitch	Height Above Board	Height Above Board	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Type	Number of Positions	Height Above Board [z]	Height Above Board [z]
JAE Electronics WR-80S-VF-N1	4 mm 5 mm 6 mm	Gold	0.02 "	0.5 mm	0.128 in	3.25 mm	2	0.1 Ám	4 Áin	Surface Mount	Receptacle Center Strip Contacts	80
JAE Electronics WR-80S-VF-N1-R1500	4 mm 5 mm 6 mm	Gold	0.02 "	0.5 mm	0.128 in	3.25 mm	2	0.1 Ám	4 Áin	Surface Mount	Receptacle Center Strip Contacts	80

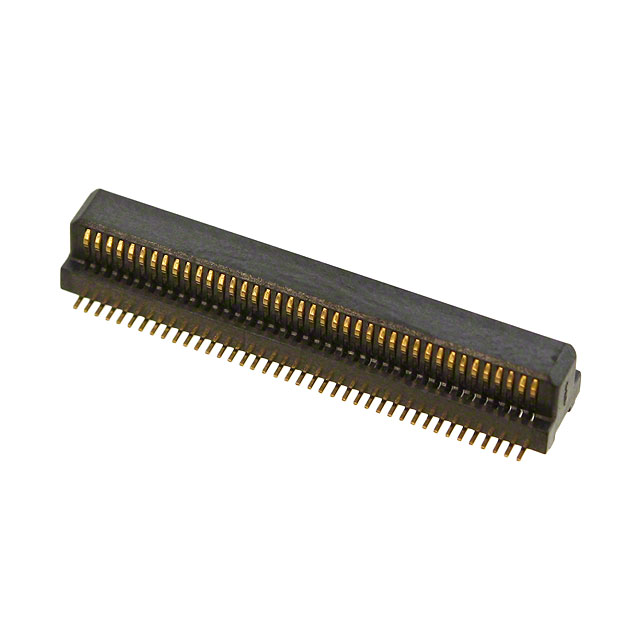

JAE Electronics WR-80S-VFH05-N1	4.5 mm 5.5 mm 6.5 mm	Gold	0.02 "	0.5 mm			2	0.1 Ám	4 Áin	Surface Mount	Receptacle Center Strip Contacts	80	0.148 in	3.75 mm
JAE Electronics WR-80S-VFH30-N1-R1000	7 mm 8 mm 9 mm	Gold	0.02 "	0.5 mm		6.25 mm	2	0.1 Ám	4 Áin	Surface Mount	Receptacle Center Strip Contacts	80	0.246 in
JAE Electronics WR-80S-VFH05-N1-R1500	4.5 mm 5.5 mm 6.5 mm	Gold	0.02 "	0.5 mm			2	0.1 Ám	4 Áin	Surface Mount	Receptacle Center Strip Contacts	80	0.148 in	3.75 mm
JAE Electronics WR-80S-VFH30-N1	7 mm 8 mm 9 mm	Gold	0.02 "	0.5 mm		6.25 mm	2	0.1 Ám	4 Áin	Surface Mount	Receptacle Center Strip Contacts	80	0.246 in
