97R06 Series
Manufacturer: Grayhill Inc.
Beta
⌘K

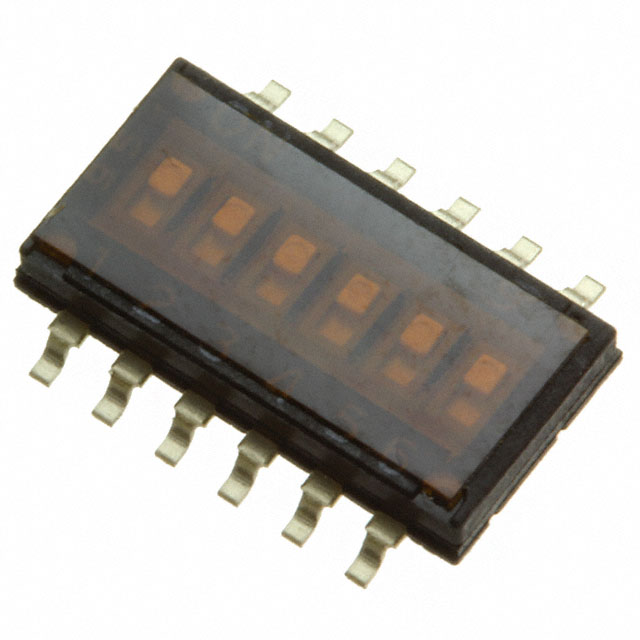

SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Mechanical Life | Body Material | Length [x] | Length [x] | Actuator Type | Voltage Rating | Circuit | Number of Positions | Mounting Type | Features | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Contact Material | Washable | Actuator Level | Height Above Board [z] | Height Above Board [z] | Contact Finish | Pitch | Pitch | Pitch |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 1000 Cycles | Polyamide (PA) Nylon | 8.85 mm | 0.348 in | Slide (Standard) | 24 VDC | SPST | 6 | Surface Mount | Tape Seal | 25 mA | 85 °C | -40 C | Gull Wing | Copper Alloy | Flush Recessed | 0.061 " | 1.55 mm | Gold | 0.05 " | 1.27 mm | Half |
