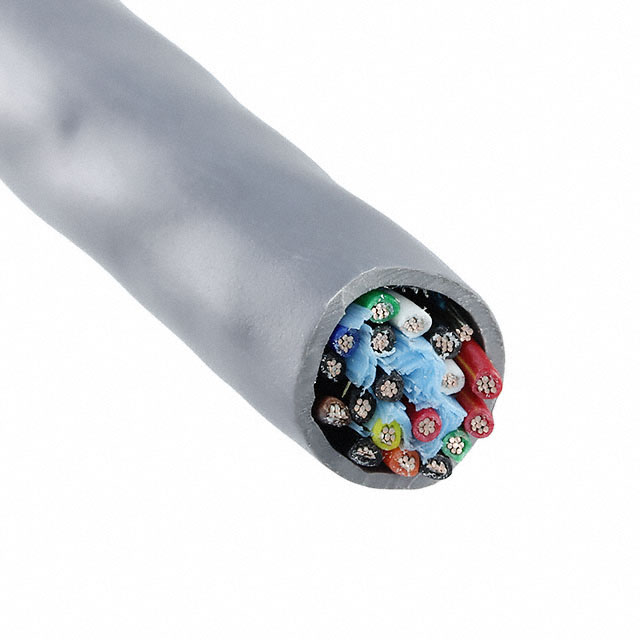

M13149 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-PAIR 18COND 20AWG
| Part | Shield Material | Shield Coverage | Jacket (Insulation) Material | Number of Conductors | Length | Length | Conductor Insulation | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Ratings | Shield Type | Features | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 18 | 152.4 m | 500 ft | Polyethylene (PE) | Multi-Pair | 0.522 " | 13.26 mm | Slate | Copper Tinned | 1.194 mm | 0.047 in | 20 AWG | 28 AWG | 7 | 300 VDC | UL Style 2919 | Foil | Drain Wire | 80 °C | -20 ░C |
