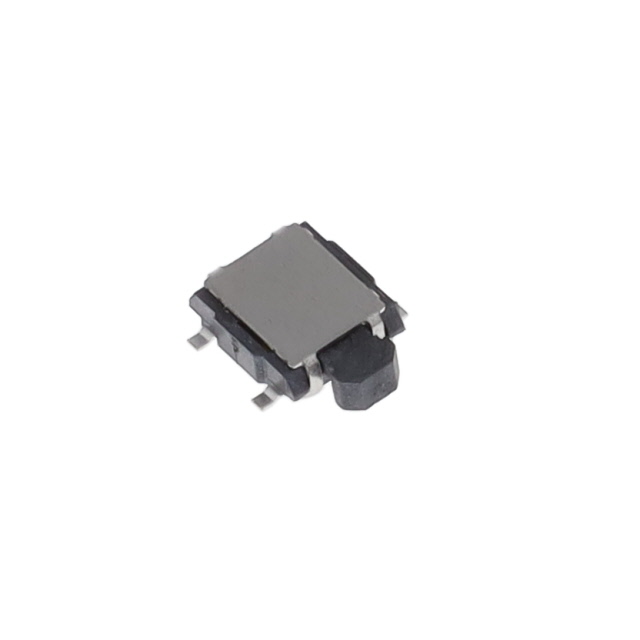

TL3901 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH TACTILE SPST-NO 0.05A 12V
| Part | Switch Travel | Mechanical Life | Actuator Orientation | Features | Mounting Type | Operating Force | Operating Temperature [Max] | Operating Temperature [Min] | Outline [y] | Outline [x] | Actuator Type | Contact Rating @ Voltage | Switch Function | Illumination | Circuit | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.3 mm | 50000 Cycles | Side Actuated | Board Guide | Right Angle Surface Mount | 180 gf | 85 °C | -40 C | 5.4 mm | 6 mm | Rectangular Button | 0.05 A 12 VDC | Off-Mom | Non-Illuminated | SPST-NO | Gull Wing |
