725-020 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 20POS 0.100

Part	Termination Rows	Material - Insulation	Contact Type	Gender	Card Type	Number of Rows	Read Out	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Number of Positions/Bay/Row	Contact Material	Color	Contact Finish	Number of Positions	Pitch	Pitch	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Termination	Termination Rows [custom]	Number of Rows [custom]

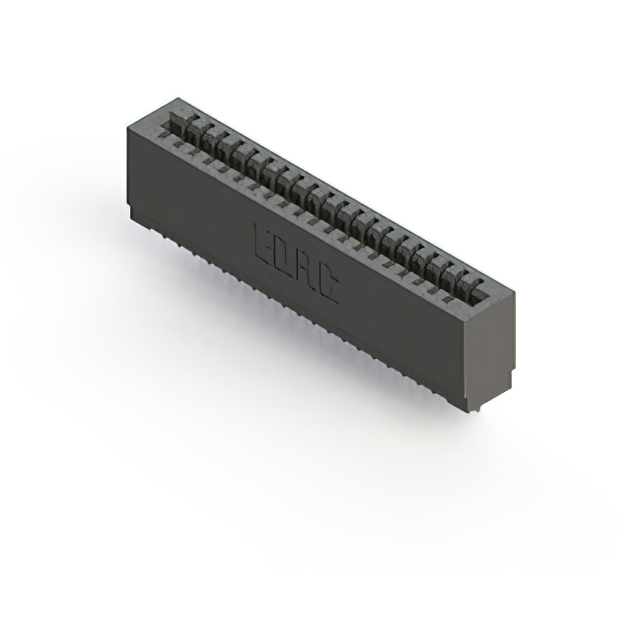

EDAC Inc. 725-020-541-101	1	Polyester Thermoplastic	Cantilever	Female	Non Specified - Single Edge	1	Single	30 Áin	0.76 Ám	Through Hole	20 Bay/Row	Copper Alloy	Black	Gold	20	0.1 "	2.54 mm	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap

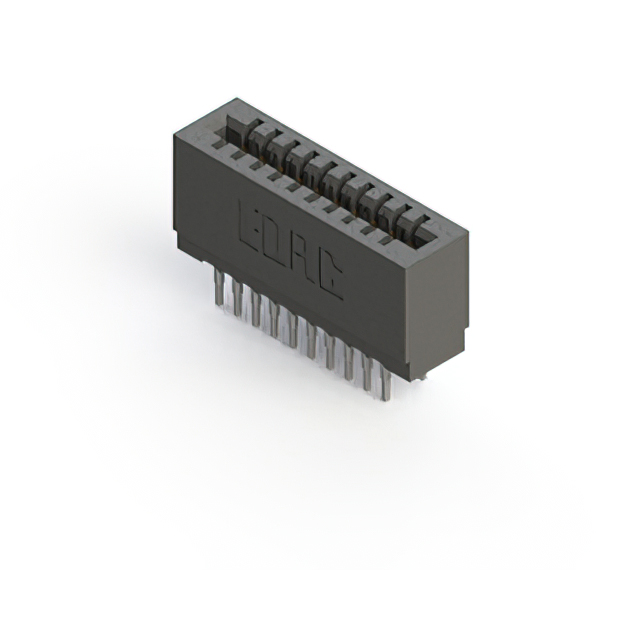

EDAC Inc. 725-020-541-201		Polyester Thermoplastic	Cantilever	Female	Non Specified - Dual Edge		Dual	30 Áin	0.76 Ám	Through Hole	10	Copper Alloy	Black	Gold	20	0.1 "	2.54 mm	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	2	2

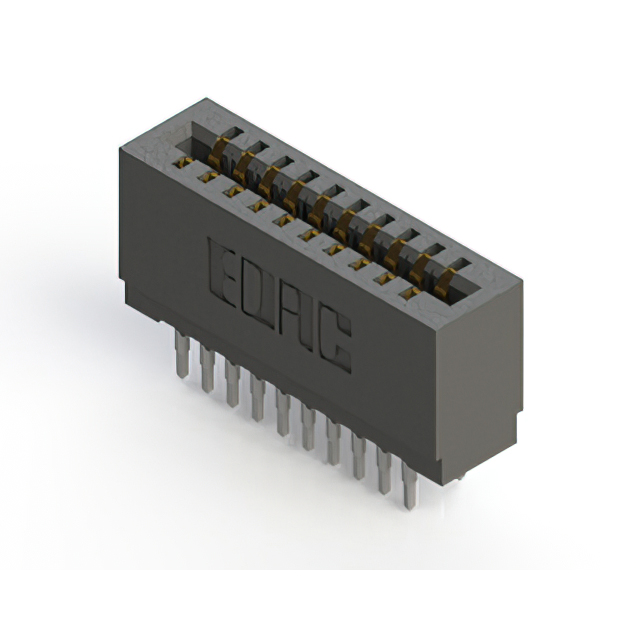

EDAC Inc. 725-020-560-201		Polyester Thermoplastic	Cantilever Make Before Break	Female	Non Specified - Dual Edge		Dual	30 Áin	0.76 Ám	Through Hole	10	Copper Alloy	Black	Gold	20	0.1 "	2.54 mm	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	2	2

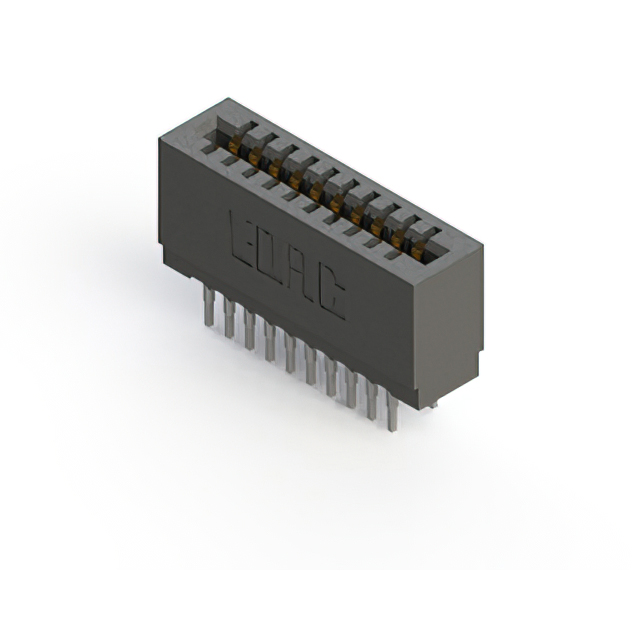

EDAC Inc. 725-020-545-201		Polyester Thermoplastic	Cantilever	Female	Non Specified - Dual Edge		Dual	30 Áin	0.76 Ám	Through Hole	10	Copper Alloy	Black	Gold	20	0.1 "	2.54 mm	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	2	2
EDAC Inc. 725-020-540-201		Polyester Thermoplastic	Cantilever	Female	Non Specified - Dual Edge		Dual	30 Áin	0.76 Ám	Through Hole	10	Copper Alloy	Black	Gold	20	0.1 "	2.54 mm	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	2	2
