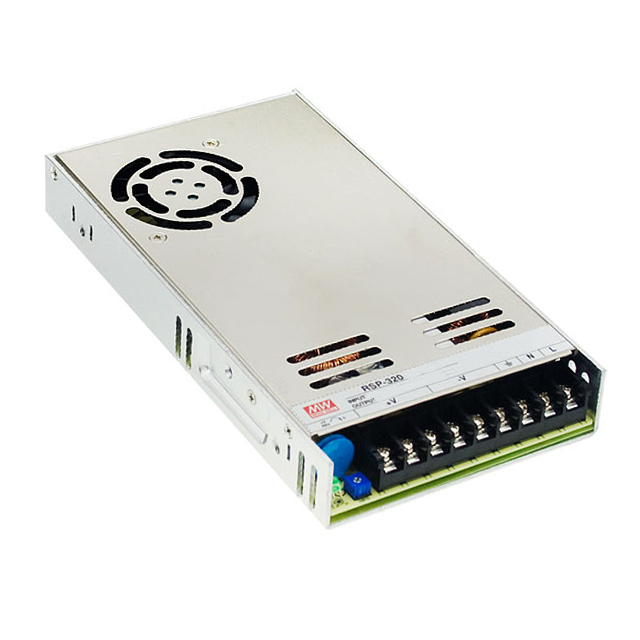

RSP-320 Series

Catalog

AC/DC CONVERTER 48V 322W

Part	Efficiency	Features	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Mounting Type	Current - Output 1	Type	Applications	Approval Agency	Power (Watts)	Voltage - Isolation
MEAN WELL USA Inc. RSP-320-48	90 %	Adjustable Output PFC Universal Input	264 VAC 370 VDC	88 VAC 124 VDC	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	48 V	-30 °C	70 °C	1	Chassis Mount	6.7 A	Enclosed	ITE (Commercial)	CB CCC CE cURus TUV	322 W	3000 V
MEAN WELL USA Inc. RSP-320-24	89 %	Adjustable Output PFC Universal Input	264 VAC 370 VDC	88 VAC 124 VDC	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	24 V	-30 °C	70 °C	1	Chassis Mount	13.4 A	Enclosed	ITE (Commercial)	CB CCC CE cURus TUV	322 W	3000 V
MEAN WELL USA Inc. RSP-320-27	89 %	Adjustable Output PFC Universal Input	264 VAC 370 VDC	88 VAC 124 VDC	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	27 V	-30 °C	70 °C	1	Chassis Mount	11.9 A	Enclosed	ITE (Commercial)	CB CCC CE cURus TUV	321 W	3000 V
MEAN WELL USA Inc. RSP-320-13.5	88 %	Adjustable Output PFC Universal Input	264 VAC 370 VDC	88 VAC 124 VDC	215 mm	30 mm	1.18 in	4.53 in	115 mm	8.46 in	13.5 V	-30 °C	70 °C	1	Chassis Mount	23.8 A	Enclosed	ITE (Commercial)	CB CCC CE cURus TUV	321 W	3000 V
