MB2411J Series

Catalog

SWITCH PUSHBUTTON SPDT 3A 125V

Part	Electrical Life	Mechanical Life	Actuator Marking	Type	Mounting Type	Current Rating (Amps)	Actuator Type	Voltage Rating - AC	Termination Style	Switch Function	Features	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Illumination Type, Color	Illumination Voltage (Nominal)	Color - Actuator/Cap	Voltage Rating - DC
NKK Switches MB2411JW01-H	25000 Steps	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	12.5 mm	SPDT	85 °C	-30 ░C
NKK Switches MB2411JW01-A-4A-EF	25000 Steps	200000 Cycles	No Marking	Illuminated Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Solder Lug	On-Mom	Epoxy Sealed Terminals	18.4 mm	15 mm	SPDT	85 °C	-30 ░C	Green/Yellow LED	2 VDC 2.1 VDC	Black
NKK Switches MB2411JW01-F-1F	25000 Steps	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	12.5 mm	SPDT	85 °C	-30 ░C			Green

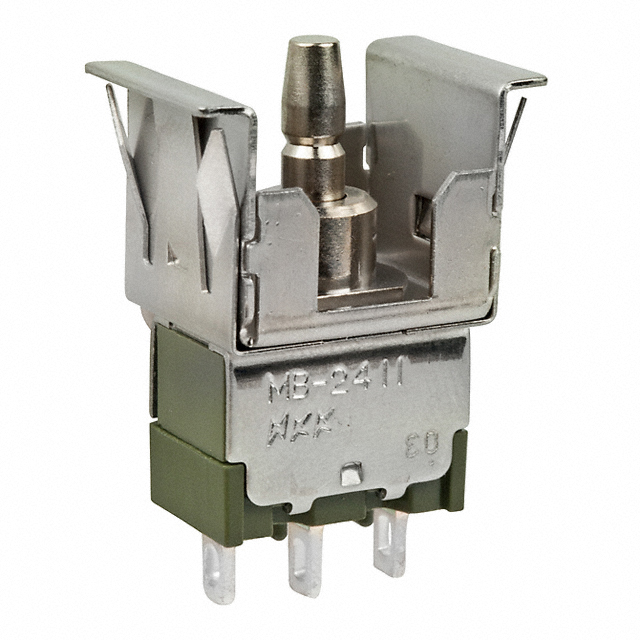

NKK Switches MB2411JW01	25000 Steps	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	3 A	Plunger for Cap	125 V	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	12.5 mm	SPDT	85 °C	-30 ░C
NKK Switches MB2411JA01-A-2A-F	25000 Steps	200000 Cycles	No Marking	Illuminated Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	12.5 mm	SPDT	85 °C	-30 ░C	Green LED	2.1 VDC	Black
NKK Switches MB2411JW01-A-1A	25000 Steps	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	12.5 mm	SPDT	85 °C	-30 ░C			Black
NKK Switches MB2411JW01-A-3A-CF	25000 Steps	200000 Cycles	No Marking	Illuminated Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Solder Lug	On-Mom	Epoxy Sealed Terminals	18.4 mm	15 mm	SPDT	85 °C	-30 ░C	Green/Red LED	2 VDC 2.25 VDC	Black
NKK Switches MB2411JA01-G-1A	25000 Steps	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	12.5 mm	SPDT	85 °C	-30 ░C			Blue

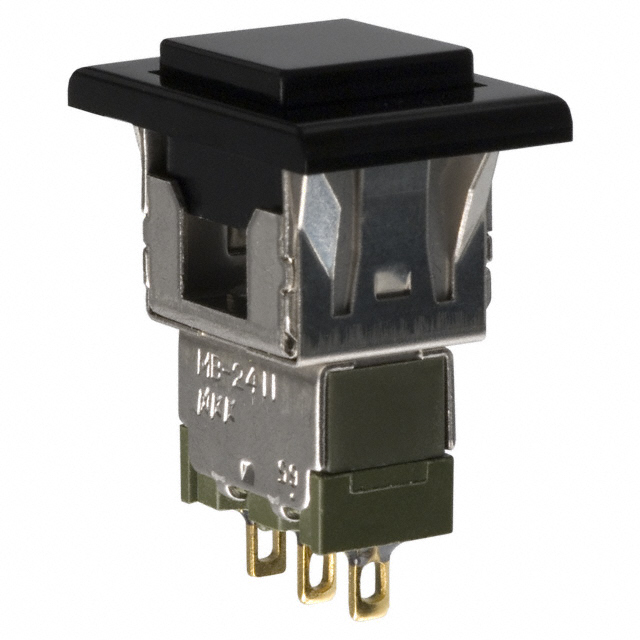

NKK Switches MB2411JG01-A-1A	100000 Cycles	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	0.4 VA	Button Square	28 V	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	12.5 mm	SPDT	85 °C	-30 ░C			Black	28 V

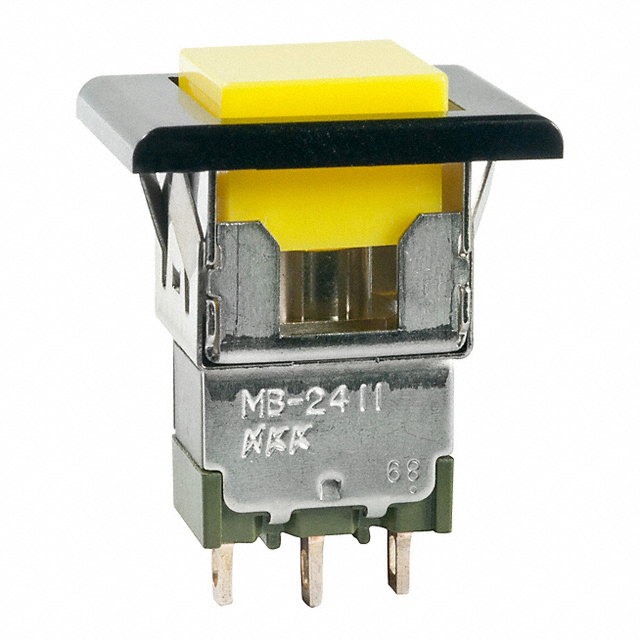

NKK Switches MB2411JW01-E-1A	25000 Steps	200000 Cycles	No Marking	Standard	Panel Mount Snap-In	3 A	Button Square	125 V	Solder Lug	On-Mom	Epoxy Sealed Terminals	15 mm	12.5 mm	SPDT	85 °C	-30 ░C			Yellow
