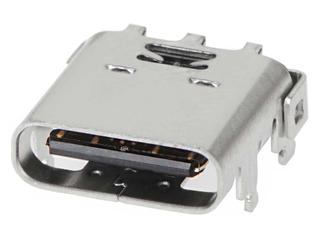

Universal Serial Bus (USB) Shielded I/O Receptacle, Type C, Right-Angle, Top Mount, Dual Row, Through Hole, Gold (Au) Flash over Palladium Nickel Plating
Universal Serial Bus (USB) Shielded I/O Receptacle, Type C, Right-Angle, Top Mount, Dual Row, Through Hole, Gold (Au) Flash over Palladium Nickel Plating
Universal Serial Bus (USB) Shielded I/O Receptacle, Type C, Right-Angle, Top Mount, Dual Row, Through Hole, Gold (Au) Flash over Palladium Nickel Plating
| Part | Material Flammability Rating | Contact Finish | Voltage - Rated | Specifications | Mating Cycles | Connector Type | Gender | Features | Number of Contacts | Mounting Feature | Number of Ports | Operating Temperature [Min] | Operating Temperature [Max] | Shielding | Insulation Color | Current Rating (Amps) | Mounting Type | Shell/Shielding Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | UL94 V-0 | Gold | 30 V | USB 2.0 | 10000 | USB-C (USB TYPE-C) | Receptacle | Board Guide | 24 | Horizontal | 1 | -30 ░C | 85 °C | Shielded | Black | 0.5 A 1.25 A 5 A | Through Hole Right Angle | Stainless Steel | Solder |
