745497 Series

Catalog

CONN D-SUB RCPT 37POS IDC

Part	Contact Material	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Wire Gauge [Max]	Wire Gauge [Min]	Voltage Rating	Color	Material Flammability Rating	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Current Rating (Amps)	Connector Style	Number of Rows [custom]	Shell Size, Connector Layout	Shell Size, Connector Layout	Connector Type	Mounting Type	Contact Type	Number of Positions	Termination
TE Connectivity AMP Connectors 745497-2	Phosphor Bronze	Thermoplastic Glass Filled	-55 C	105 ░C	26 AWG	22 AWG	250 V	Black	UL94 V-0	Gold	30 Áin	0.76 Ám	Housing/Shell (Unthreaded)	Varies by Wire Gauge	D-Sub	2	4	DC C	Receptacle Female Sockets	Free Hanging (In-Line)	Signal	37	Discrete Wire IDC
TE Connectivity AMP Connectors 745497-1	Phosphor Bronze	Thermoplastic Glass Filled	-55 C	105 ░C	30 AWG	26 AWG	250 V	Black	UL94 V-0	Gold	30 Áin	0.76 Ám	Housing/Shell (Unthreaded)	Varies by Wire Gauge	D-Sub	2	4	DC C	Receptacle Female Sockets	Free Hanging (In-Line)	Signal	37	Discrete Wire IDC

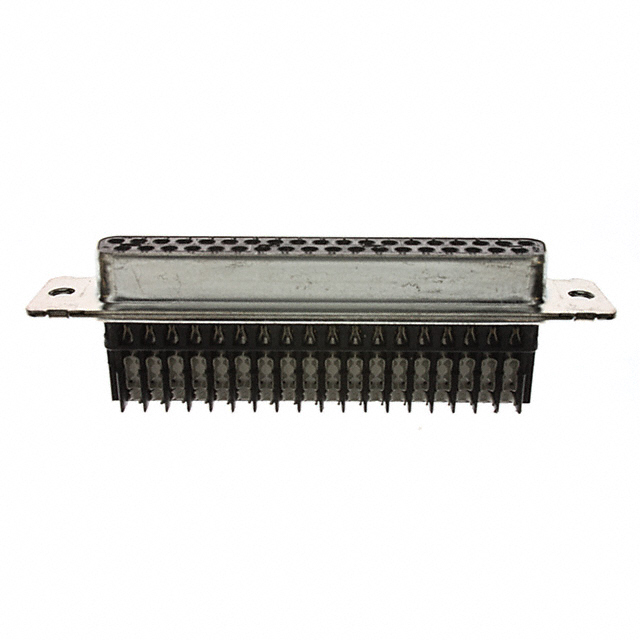

TE Connectivity AMP Connectors 1-745497-5	Phosphor Bronze	Thermoplastic Glass Filled	-55 C	105 ░C	26 AWG	22 AWG	250 V	Black	UL94 V-0	Gold	30 Áin	0.76 Ám	Housing/Shell (Unthreaded)	Varies by Wire Gauge	D-Sub	2	4	DC C	Receptacle Female Sockets	Free Hanging (In-Line)	Signal	37	Discrete Wire IDC
