0526060.P Series

FUSE 10X32 500VDC 300VAC TERMINAL 60A

Catalog

FUSE 10X32 500VDC 300VAC TERMINAL 60A

Part	DC Cold Resistance	Package / Case	Voltage Rating - AC	Fuse Type	Melting I²t	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Mounting Type	Size / Dimension [diameter]	Size / Dimension [x]	Response Time	Voltage Rating - DC	Melting I˛t	Size / Dimension [diameter]	Size / Dimension [x]

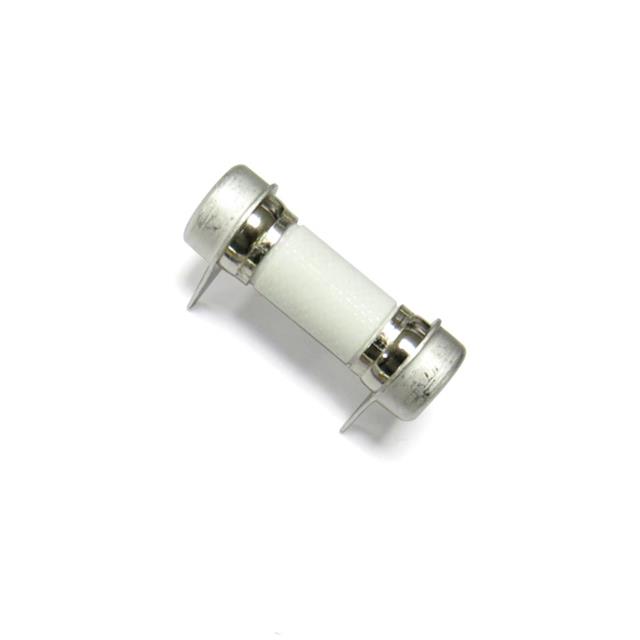

LITTELFUSE 0526060.UXTHP	0.0011 Ohms	Radial Bend Cylinder	300 V	Cartridge Ceramic	6290 I²t	-55 C	125 °C	60 A	Through Hole	0.442 Dia	1.378 L	Fast Blow	500 V
LITTELFUSE 0526060.ZXISOP	0.000011 Ohms	Cylindrical Blade Terminal (Bolt)	300 V	Cartridge Ceramic	6290 I²t	-55 C	125 °C	60 A	Bolt Mount	11.43 mm	35.2 mm	Fast Blow	500 V	6290	0.45 in	1.386 "

Catalog

FUSE 10X32 500VDC 300VAC TERMINAL 60A

Description

The 526 series fuses are specifically designed and tested to meet the circuit protection needs of compact automotive electronics applications. These robust fuses include a 500 Vac/Vdc rating and provide an excellent interrupting rating. AEC-Q200 qualified, the 526 fuses are ideal for the On-Board Chargers (OBCs) and Power Distribution Units (PDUs) in the latest electric vehicle designs. With available through-hole and bolt-down versions, it’s flexible for either PC board or screw assembly.
