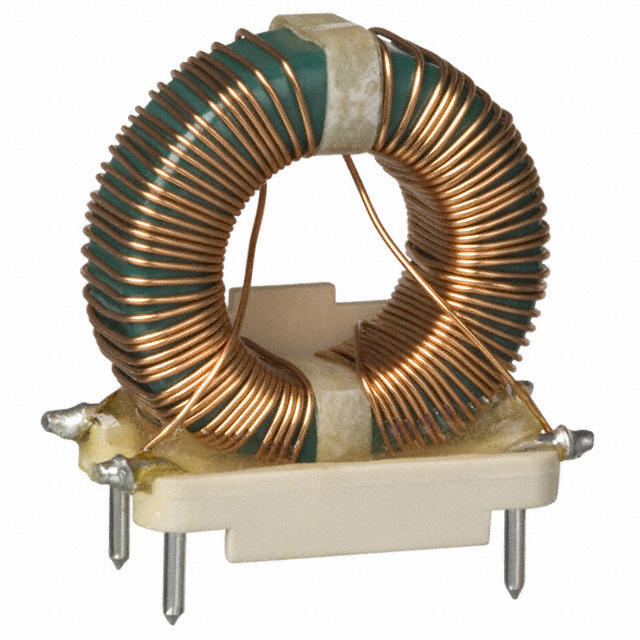

8104 Series
Manufacturer: Bourns Inc.
Beta
⌘K
CMC 10MH 2.4A 2LN TH
| Part | Number of Lines | Inductance @ Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Height (Max) [Max] [z] | Height (Max) [Max] [z] | DC Resistance (DCR) (Max) [Max] | Mounting Type | Current Rating (Max) [Max] | Package / Case | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | 2 | 10 mH | -55 C | 105 ░C | 1.2 in | 30.48 mm | 170 mOhm | Through Hole | 2.4 A | Vertical 4 PC Pin | 30.48 mm | 0.6 in | 1.2 in | 15.24 mm |
