7002-1571 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SSMC F STR NA CR 2.6/50D
| Part | Body Material | Cable Group | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Voltage Rating | Center Contact Plating | Dielectric Material | Mating Cycles | Impedance | Frequency - Max [Max] | Connector Style | Number of Ports | Mounting Type | Connector Type | Shield Termination | Contact Termination | Center Contact Material | Fastening Type | Housing Color | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

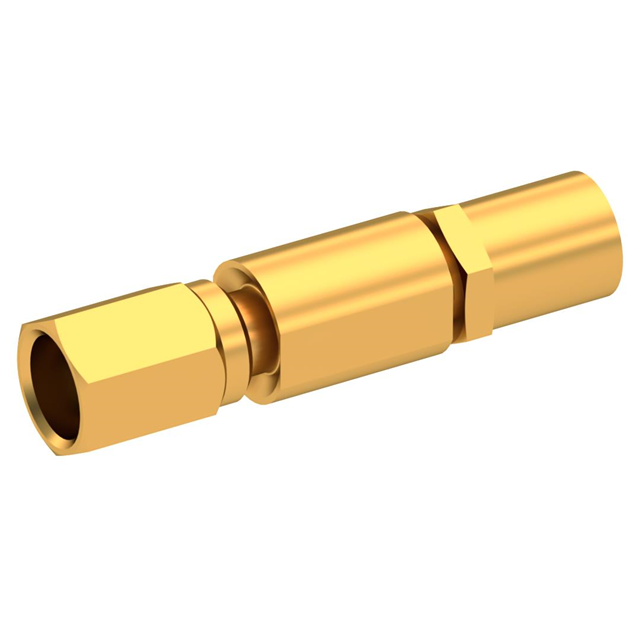

 Radiall USA, Inc. | Beryllium Copper | RD-316 RG-316DS | -65 ░C | 165 °C | Gold | 250 V | Gold | Polytetrafluoroethylene (PTFE) | 500 | 50 Ohms | 12.4 GHz | SSMC | 1 | Free Hanging (In-Line) | Female Socket Plug | Crimp | Crimp | Beryllium Copper | Threaded | Gold | |

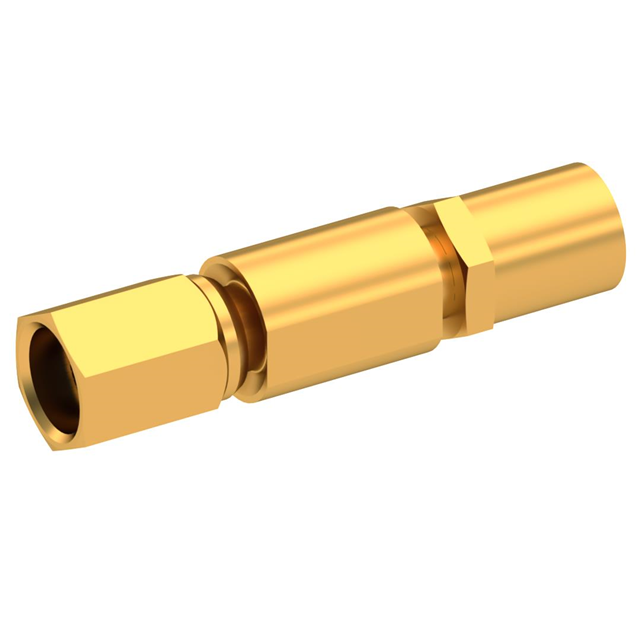

 Radiall USA, Inc. | Beryllium Copper | RG-178 | -65 ░C | 165 °C | Gold | 250 V | Gold | Polytetrafluoroethylene (PTFE) | 500 | 50 Ohms | 12.4 GHz | SSMC | 1 | Free Hanging (In-Line) | Female Socket Plug | Crimp | Crimp | Beryllium Copper | Threaded | Gold | 196 |

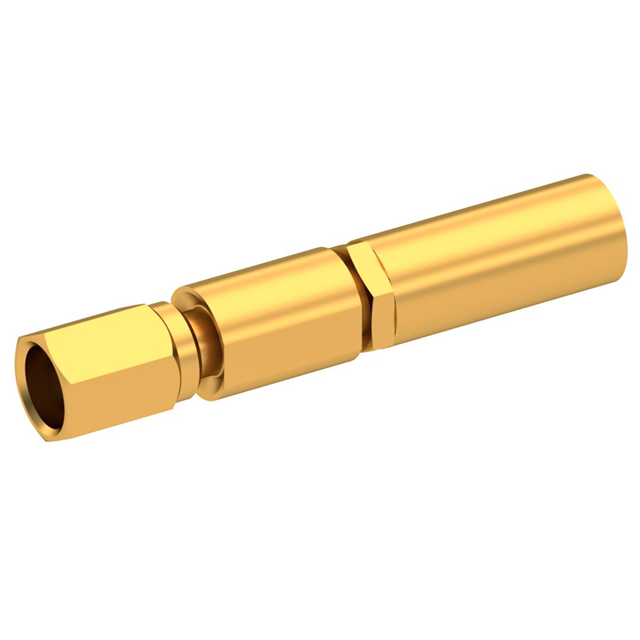

 Radiall USA, Inc. | Beryllium Copper | RG-178 | -65 ░C | 165 °C | Gold | 250 V | Gold | Polytetrafluoroethylene (PTFE) | 500 | 50 Ohms | 12.4 GHz | SSMC | 1 | Free Hanging (In-Line) | Female Socket Plug | Crimp | Crimp | Beryllium Copper | Threaded | Gold | 196 |
