07FLZ-SM Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

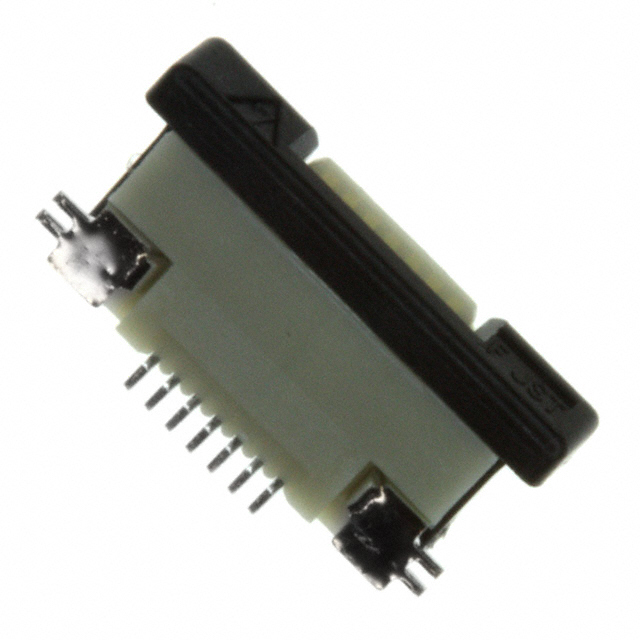

CONN FFC FPC TOP 7POS 0.5MM R/A
| Part | Current Rating (Amps) | Actuator Color | Housing Color | Locking Feature | Pitch | Pitch | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Termination | Contact Finish | Contact Material | Features | Material Flammability Rating | Height Above Board | Height Above Board | FFC, FCB Thickness | Connector/Contact Type | Flat Flex Type | Actuator Material | Housing Material | Number of Positions | Voltage Rating | Cable End Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 0.5 A | Black | Gray | Slide Lock | 0.02 " | 0.5 mm | Right Angle Surface Mount | 85 °C | -25 °C | Solder | Tin | Phosphor Bronze | Solder Retention Zero Insertion Force (ZIF) | UL94 V-0 | 2 mm | 0.079 in | 0.3 mm | Contacts Top | FFC FPC | Polyamide (PA6T) Nylon 6T | Nylon 6T Polyamide (PA6T) | 7 | 50 V | Tapered |
